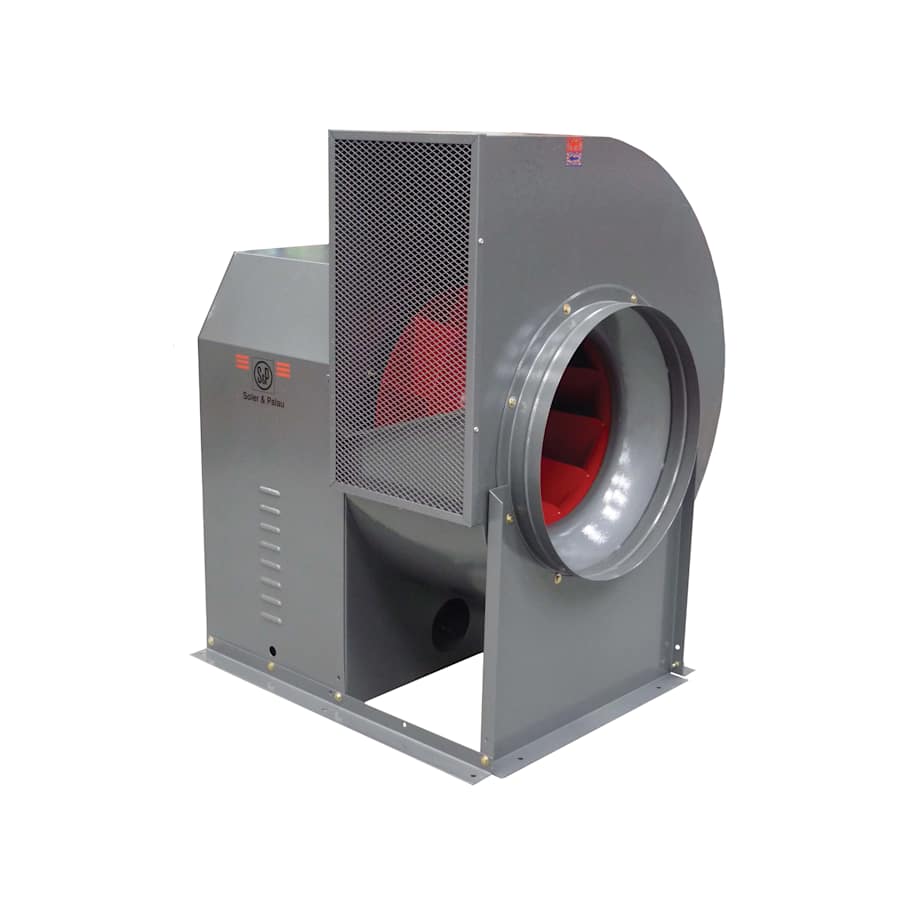

Soler and Palau 36 Inch Single Inlet Backward Inclined 1-1/2 Horse Power High RPM Belt Driven Utility Fan from the CM Collection

CM Collection 36 Inch Single Inlet Backward Inclined 1-1/2 Horse Power High RPM Belt Driven Utility Fan

Single inlet backward inclined utility belt fans provide substantial benefits for pressure flow, low power consumption, and low noise levels, ideal for commercial and industrial applications. These applications include either supply or exhaust service for ducted systems in schools, theaters, gymnasiums, manufacturing plants, hotels, office buildings, restaurant hoods, and many other general ventilation applications. Turbine performance minimizes unnecessary energy losses resulting in a system with high efficiency, while its design, manufacture and testing guarantee a long operating life with low maintenance.

Available in a full range of sizes, the CM Series belt driven backward inclined utility vent fan offers an excellent choice for all medium and high pressure exhaust or supply applications in commercial, institutional, or light industrial settings. Models are supplied complete with motor mounted on an adjustable base with an installation friendly design that helps simplify the process and reduce costs. Additionally, each fan is available with multiple options enabling you to customize your fan to your specific requirements.

Features:

AMCA Air and Sound Certified
Performance: 500-25,000 CFM with Static Pressures up to 5.5 In. W.G.
Backward Inclined CW or CCW Orientation Non-Overloading Wheels, Sizes 10 – 36 Inches
Steel Sheet Metal Construction with Corrosion Resistant Epoxy Powder Coating
Welded Scroll for Airtight Lock Seam
Adjustable Rotation and Discharge Orientations in Accordance with AMCA 99-2406-83 Standards
cULus 705 Power Ventilator (cULus 762 Optional)
Operating Temperatures of -20F to 200F Continuous
Belt Drives Permit Easy Performance Adjustments When Needed
Weather Cover, Access Door, Threaded Drain Fitting and Mounting Rails Standard

Soler & Palau is the world’s leading fan manufacturer. Their extensive range of residential and light commercial fans offer the ideal solution for air movement in any domestic application or office environment. Soler & Palau products can be found in virtually any commercial or residential application, ranging from innovative, quiet and reliable room ventilators to large diameter, high capacity exhaust systems designed for critical applications in some of the world’s toughest environments.
