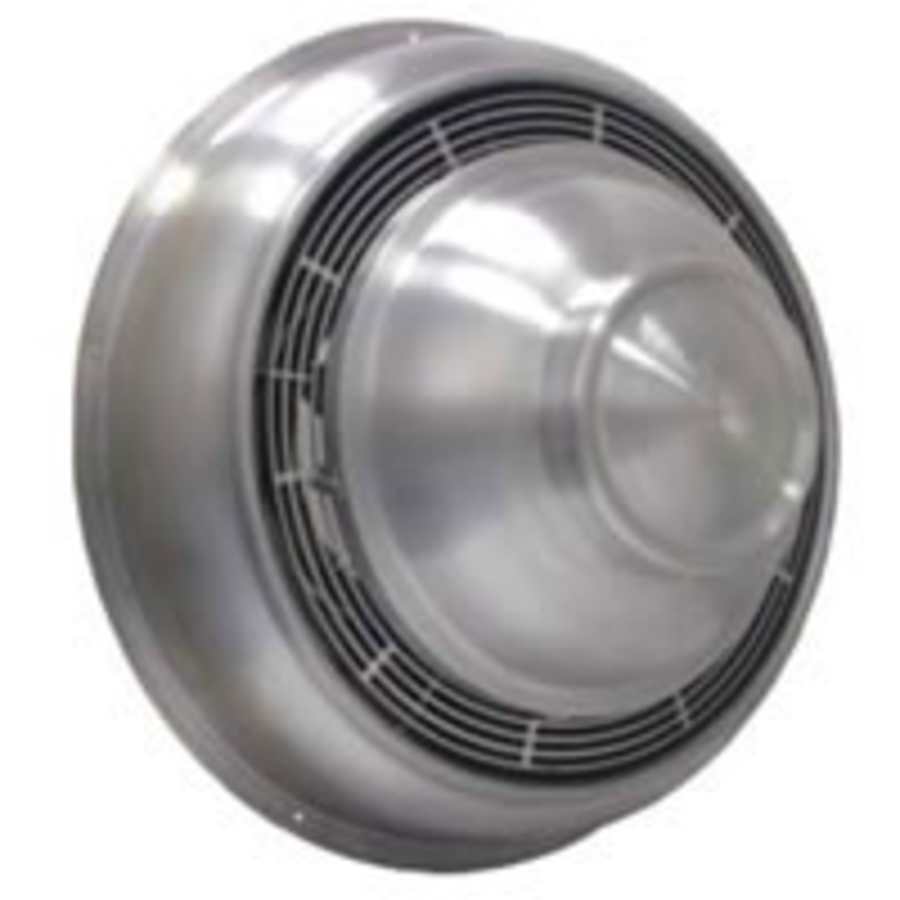

CWD Collection 1/4 Horse Power 6.4 Sones 115/1/60 Voltage Direct Drive Centrifugal Sidewall Exhauster
Model CWD direct drive fans are designed to exhaust air up to 3,360 CFM in high static pressure applications to 1”. The spun aluminum exterior provides a pleasing appearance, weatherproof construction and resistance to corrosion. The low silhouette design is less noticeable on the building exterior and the removable dome provides easy access to the fan interior for service and cleaning. The non-overloading backward inclined centrifugal wheel with its high static pressure capability, makes it suitable for either ducted or nonducted applications. It should be used where a sidewall mounted location is preferred to roof mounting. Direct drive units use smaller diameter wheels with lower rpm’s, resulting in low sound levels and quiet operation. They have no belts or fan bearings to maintain or adjust and consequently require very little maintenance. CWDs are used to exhaust relatively clean air from a variety of industrial, commercial and institutional buildings such as machinery and equipment rooms, storage areas, office buildings, restaurants, retail stores, schools and similar buildings.
Features:
Demeter: 26″
Depth: 13-1/2″
Centrifugal Wheel Non-overloading Backward Inclined Blades
Duct Connection is at Wheel Inlet
Spun Aluminum Dome Provides Compartment for Out of Airstream Motor Location
Single Speed Open Drip Motor
UL Listed
Soler & Palau is the world’s leading fan manufacturer. Their extensive range of residential and light commercial fans offer the ideal solution for air movement in any domestic application or office environment. Soler & Palau products can be found in virtually any commercial or residential application, ranging from innovative, quiet and reliable room ventilators to large diameter, high capacity exhaust systems designed for critical applications in some of the world’s toughest environments.
Additional Soler and Palau Links
View the Manufacturer Warranty
Browse all Soler and Palau Products
Soler and Palau CWD – Direct Drive Sidewall Exhauster Collection
Specifications
| Approved for Commercial Use | Yes |
| ADA | No |
| Certifications | UL |
| Kitchen Approved | No |
| Height | 24 in. |
| Width | 30 in. |
| Product Weight | 37 lbs. |
| Length | 30 in. |
| CFM | 898 |
| Material | Aluminum |
| Configuration | Sidewall Exhaust Fan |
| Mounting Type | Wall |
| Humidity Sensing | No |
| Horsepower | 0.25 |
| Sones | 6.4 |
| Drive Type | Direct Drive |
| Speeds | 1 |
| Color | Aluminum |
| Color Tone | Multi-Colored |
