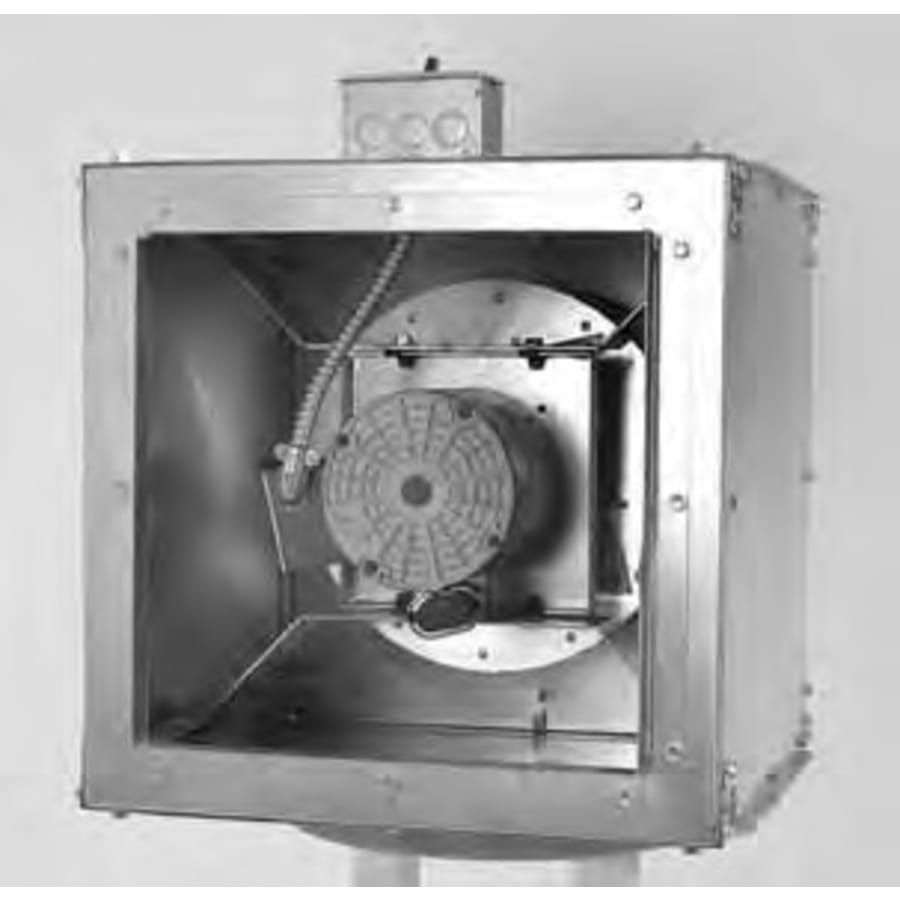

SQB Collection 1/4 Horse Power 10.7 Sones Three Phase Square Inline Belt Drive Centrifugal Duct Fan
Soler & Palau model SQB square inline duct mounted fans are available in sizes 7 through 24, moving from 100 to over 9,300 CFM, with static pressure capabilities to 1-1/2”. SQB units are the perfect selection for clean air applications where space is a leading consideration. The compact housing with removable access doors and side discharge capability can be mounted in any orientation. AMCA licensed performance and UL listing assure that you’ve made a reliable selection.
Features:
Dimensions: 23″ W x 15″ H
Housing is Made of Heavy Gauge Galvanized Steel for Extra Strength
Integral Inlet and Outlet Duct Collars
Centrifugal Wheel is All Aluminum Backward Inclined
Bearings Designed for Minimum 200,000 Hour Life
Bearings are Double Sealed and Prelubricated with Relube Fittings
Motor is Single Speed Open Drip Proof
UL Listed
Motors are Standard Permanently Sealed Ball Bearing Type.
All Motors are Rated for Continuous Duty
Soler & Palau is the world’s leading fan manufacturer. Their extensive range of residential and light commercial fans offer the ideal solution for air movement in any domestic application or office environment. Soler & Palau products can be found in virtually any commercial or residential application, ranging from innovative, quiet and reliable room ventilators to large diameter, high capacity exhaust systems designed for critical applications in some of the world’s toughest environments.
Additional Soler and Palau Links
View the Manufacturer Warranty
Browse all Soler and Palau Products
Soler and Palau SQB – Square Inline Belt Drive Duct Fan Collection
Specifications
| Approved for Commercial Use | Yes |
| ADA | No |
| Certifications | UL |
| Kitchen Approved | No |
| Height | 36 in. |
| Width | 24 in. |
| Product Weight | 75 lbs. |
| Length | 24 in. |
| CFM | 756 |
| Material | Galvanized Steel |
| Configuration | Belt Drive Centrifugal Duct Fan |
| Mounting Type | In-Line |
| Humidity Sensing | No |
| Horsepower | 0.25 |
| Sones | 10.7 |
| Drive Type | Belt Drive |
| Speeds | 1 |
