Toto CST474CEFG Features:
Two-piece configuration eases installation and maintenance
Elongated bowls provide an extra 1-1/2″ compared to the traditional round bowl
Covered under Toto’s 1-year limited warranty
Made from durable and easy-to-clean vitreous china
Floor mounted installation type provides for fast and easy installation

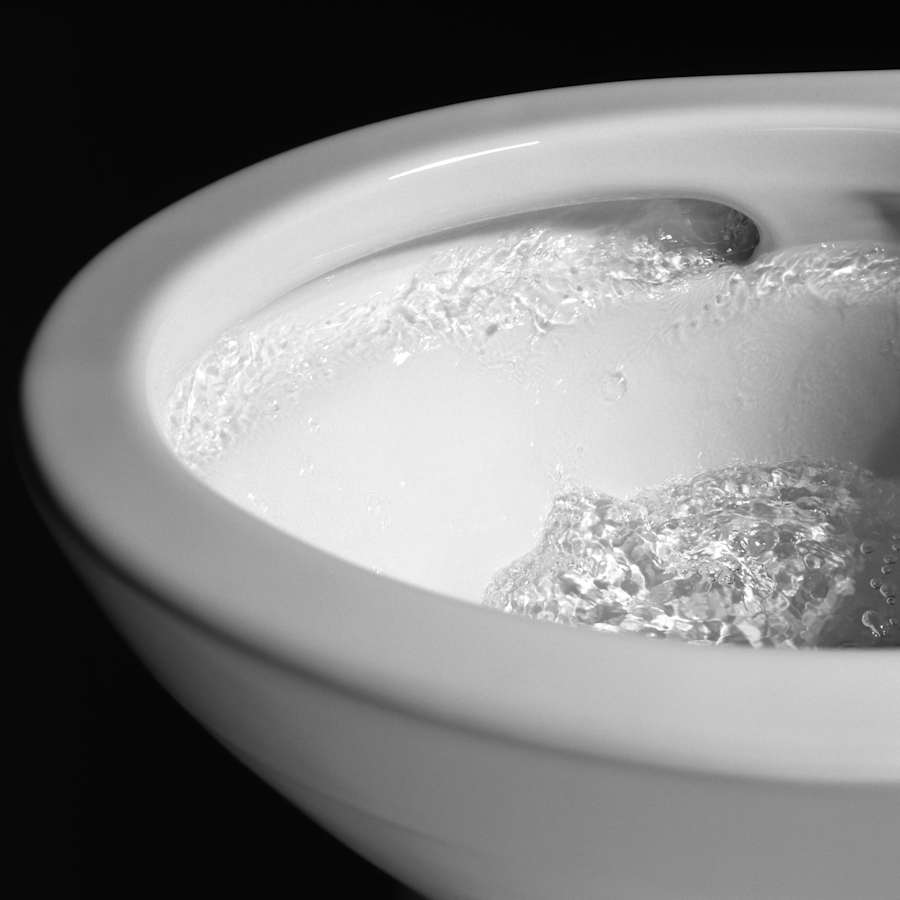

Tornado Flush® flush system offers outstanding commercial grade performance with a powerful cyclonic rinsing action
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act for toilets
WaterSense certified – toilet uses 20% less water than the current standard while maintaining superior performance
Concealed trapway – providing a smoother and less utilitarian appearance, a built in skirt hides the discharge passageway from view
Product Technologies / Benefits:
CeFiONtect: A super-smooth glazing engineered to prevent debris, mold and bacteria from sticking to porous surfaces of ceramic toilets. Accompanied with regular cleaning, CeFiONtect keeps your toilet cleaner for a longer period of time.
Toto CST474CEFGÂ Specifications:
Overall Height: 30″ (bottom of the base to the highest point on the toilet)
Overall Length: 28-1/2″ (back of the tank to the front of the rim)
Overall Width: 16-1/2″ (furthest point on the left to the furthest on the right)
Bowl Height: 16-1/8″ (bottom of the base to the rim)
Flow Rate: 1.28 GPF (gallons-per-flush)
Water Area: 6-7/8″ x 9-3/4″ (inner rim dimensions length X width)
Tank Width: 16-1/2″ (left most to right most points on tank)
Trapway (Discharge Passageway) Size: 2-1/8″
Distance Between Toilet Seat Installation Holes: 5-1/2″Â
Compatible with TSU01W.10 uni-fit (sold separately) to convert to 10″ rough in
Â
Additional TOTO Links
View the Manufacturer Warranty
Browse all TOTO Products
TOTO Vespin II Collection
Specifications
| Depth | 28.5 in. |
| Width | 16.5 in. |
| Height | 30 in. |
| Bowl Height | 16.125 in. |
| Gallons Per Flush | 1.28 |
| Rough In | 12 in. |
| Extension | 28.313 in. |
| Trapway | 2.125 in. |
| Water Area | 6.875 x 9.75 |
| Insulation Type | Floor Mounted |
| Material | Vitreous China |
| Thermostat | Basic |
| Bowl Shape | Elongated |
| Configuration | Two Piece |
| Flush Type | Gravity Flush |
| Water Efficient | Yes |
| Design Features | Concealed Trapway |

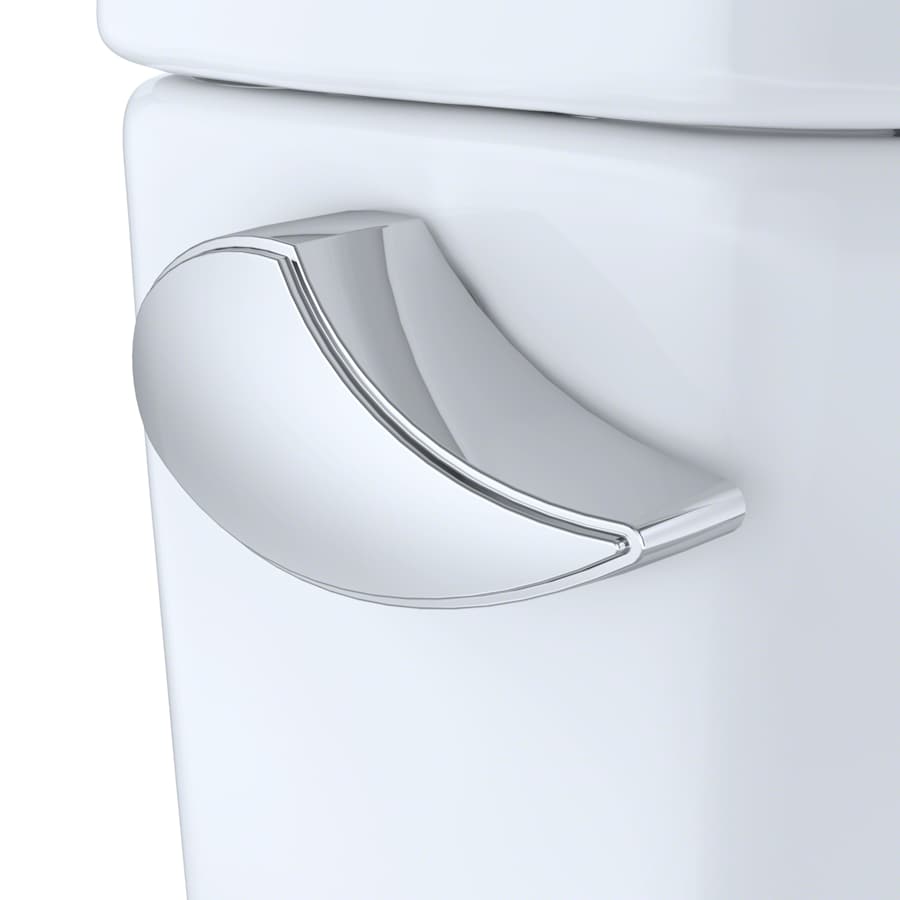

| Trip Lever Placement | Left |
| Branded Surface Treatment | CeFiONtectâ„¢ Glaze |
| Trip Lever Finish | Chrome |
| Approved for Commercial Use | Yes, No |
| Collection | Vespin II |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| CA Drought Compliant | Yes |
| TX Drought Compliant | Yes |
| ASSE Code | A112.19.2 |
| Certifications | UPC, ASME, CSA |
| CSA Code | B45.1 |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| WaterSense Certified | Yes |
| Seat Included | No |
| Angle Supply Included | No |
| Color | Bone |
| Color Tone | Multi-Colored |
