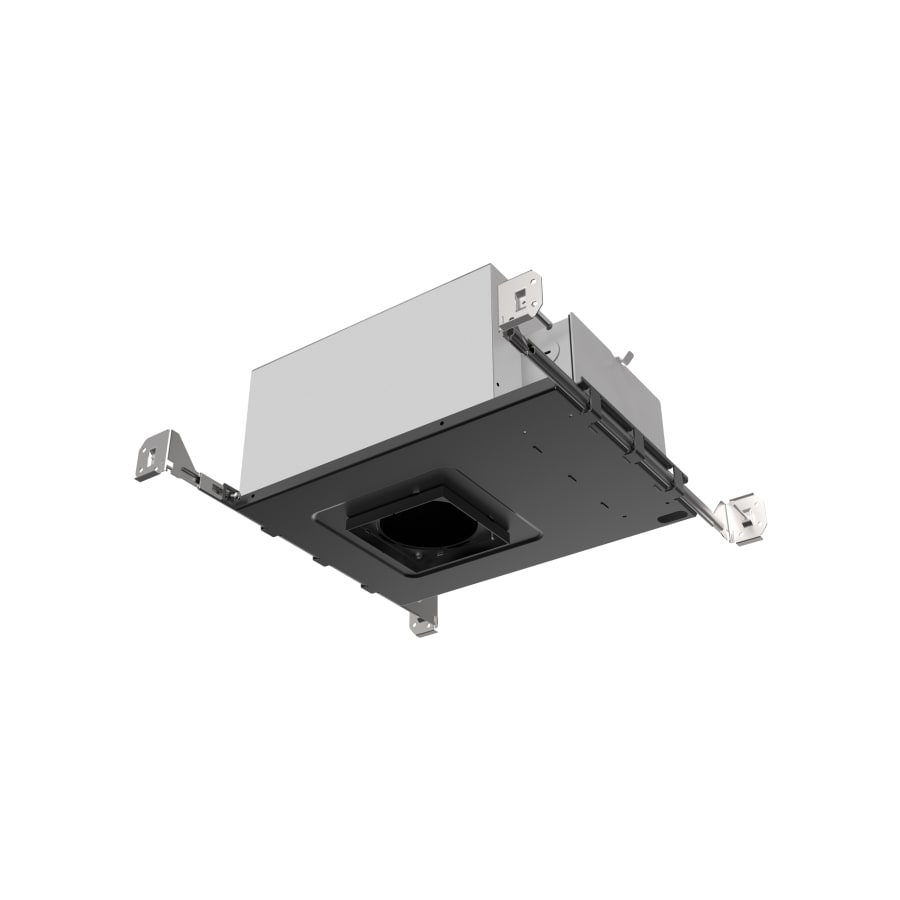

Element by Visual Comfort EN3S-LO940AAI Features
Tool-free, adjustable lighting focus even while lighting is on
Light adjusts 0-30° of tilt and 359° of rotation
Powder coated matte black internally and externally to reduce glare
Accepts two optical controls and optional trim-mounted lens
Optional plaster plate included for flangeless applications
Ships with 20°, 40° and 65° optics
Compact airtight IC-rated housing
Steel construction
Integrated LED lighting
Dimmable with TRIAC, ELV, or 0-10V dimmers
ETL rated for damp locations
Energy star certified
California Title 24 energy compliant
Covered under a 5 year manufacturer’s warranty
Element by Visual Comfort EN3S-LO940AAI Dimensions
Trim Size: 3″
Height: 5-3/8″
Width: 12-5/16″
Depth: 8-13/16″
Product Weight: 3.0 lbs
Cutout Size: 4″
Beam Spread: 20°, 40°, 65°
Element by Visual Comfort EN3S-LO940AAI Electrical Specifications
Bulb Base: Integrated LED
Lumens: 1060
Wattage: 12 watts
Voltage: 120 and 277 volts
Color Temperature: 4000K
Color Rendering Index: 90CRI
Average Hours: 50,000
Why Element by Visual Comfort?
With all of our recessed products, we take great care to ensure the highest quality housing components and assembly methods are employed so you can rest assured that all the things you can’t see- aiming mechanisms, heat sinks, drivers and wiring systems- deliver exceptional performance and safety.
Highly engineered recessed lighting system deserves a premium ceiling appearance. Every ELEMENT trim is made of either die-cast aluminum or a single sheet of cold rolled steel for superior durability without sagging or warping. Trims are then powder coated for a superior finish and reduced glare. Further, die-cast or steel mesh mud plates help create a smooth, flangeless “plastered-in” appearance between trim and ceiling: No seams, No flexing. No cracks.
Beautiful aesthetics and precision engineering cannot come at the expense of light performance. Every ELEMENT fixture delivers pristine, consistent light. Our engineers stay at the cutting edge of technology to deliver illumination with greater light output, longer life, less energy consumption, and a wide selection of LED and control options.
Additional Visual Comfort Links
View the Manufacturer Warranty
Visual Comfort Architectural Collection
Specifications
| Depth | 8.8 in. |
| Height | 5.4 in. |
| Product Weight | 3 lbs. |
| Width | 12.3 in. |
| Beam Spread | 20, 40, 65 Degrees |
| Cutout Size | 4 in. |
| Trim Size | 3 in. |
| Aperture Size | 3.75 in. |
| Thermostat | Modern |
| Material | Steel |
| Bulb Base | Integrated LED |
| Bubbler Type | LED |
| Bulb Visible | No |
| Dimmable | Yes |
| LED | Yes |
| Light Direction | Down Lighting |
| Number of Bulbs | 1 |
| Number of Light Source(s) | 1 |
| Color Temperature | 4000K |
| Energy Efficient | Yes |
| Airtight | Yes |
| Housing Type | New Construction Housing |
| Shallow Ceiling Compatible | Yes |
| Collection | Entra |
| Country Of Origin | China |
| Manufacturer Warranty | 5 Year |
| Certifications | ETL |
| Location Rating | Damp Location |
| Series | Architectural |
| Title 24 | Yes |
| Energy Star | Yes |
| IC Rating | IC |
| Chicago Plenum | No |
| Bulb Included | Yes |
| Shade | No |
| Power Source | Hardwired |
| Voltage | 120, 277 |
| Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
| Wattage | 12 |
| Color Rendering Index (CRI) | 90 |
| Lumens | 1060 |
| Average Hours | 50000 Hours |
| Color | Black |
| Color Tone | Blacks |
