WAC Lighting Step and Wall Lights are designed to seamlessly blend into any architecture featuring a sleek interchangeable magnetic faceplate with no visible hardware. These luminaires offer enhanced energy efficient functionality and optimized light output to adequately illuminate stairs, walls and walkways with little or no glare. Light engine is IP66 sealed for both indoor and outdoor applications.
Features:
Die-cast aluminum construction in multiple finishes
Marine grade rated stainless steel (SS finish lifetime warranty) is recommended for coastal environments

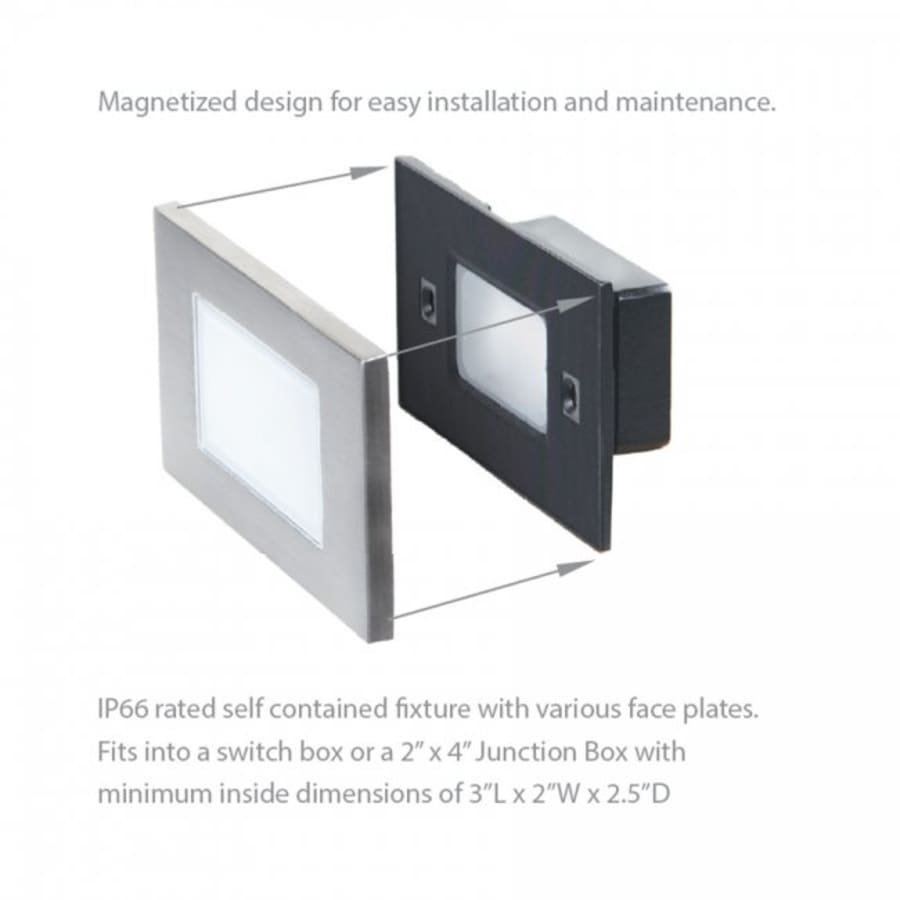

Magnetic faceplate installation with tamper proof non-visible hardware
12V Magnetic or Electronic transformer required
WAC Lighting 9075-TRN-SS or 9150-TRN-SS transformer recommended
CEC Title 24 Compliant
Wet location rated to IP66 standards for indoor and outdoor installations, No UV or heat radiation
Smooth and continuous ELV dimming to 10% with an Electronic Low Voltage dimmer
Replaceable LED Module available, Power Consumption: 3.5W, CRI: 90, 50,000 hours rated life
Standards: UL & cUL 1598 and IP66 Rated for Wet Locations
Covered under a 10 years functional and 2 years finish manufacturer warranty

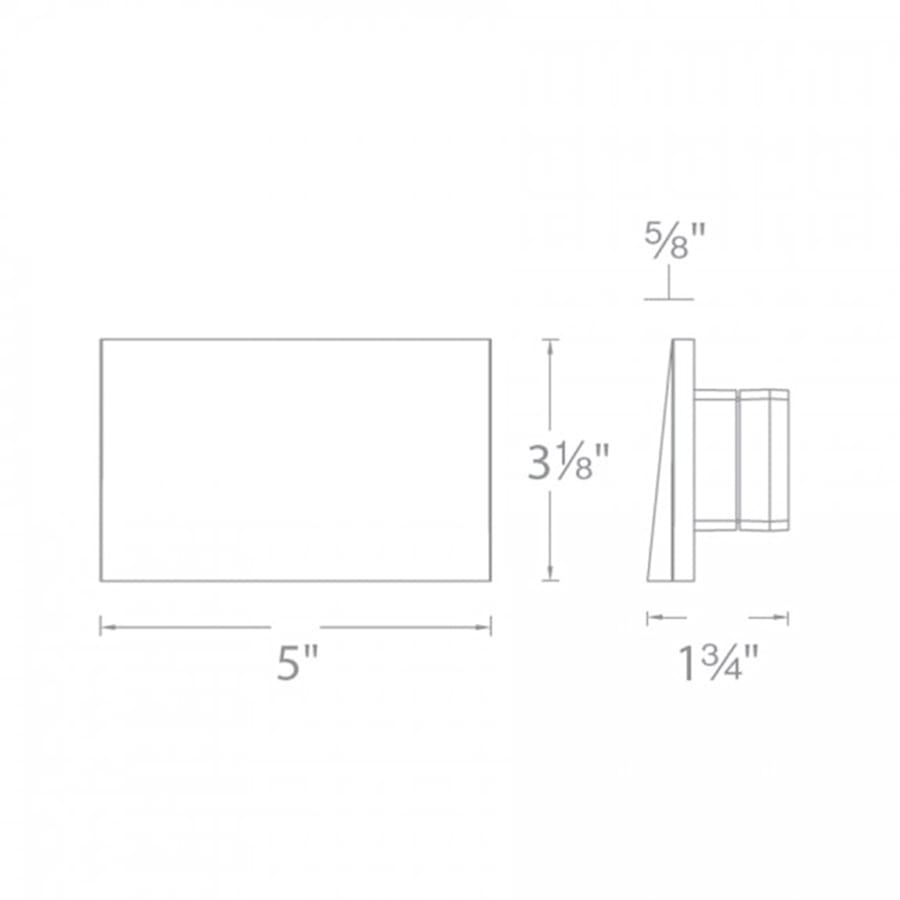

Dimensions:
Height: 3-1/8″
Width: 5″
Beam Spread: Flood Beam
Product Weight: 1.02 lbs
Electrical Specifications:
Wattage: 2
Number of Light Source(s): 1
Lumens: 38
Adjustable Color Temperature: 2700K, 3000K
Color Rendering Index (CRI): 90
Average Hours: 60000
Voltage: 12
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting WAC Landscape Collection
Specifications
| Height | 3.13 in. |
| Product Weight | 1.02 lbs. |
| Width | 5 in. |
| Nominal Width | 5 in. |
| Extension | 1.75 in. |
| Material | Aluminum |
| Thermostat | Contemporary |
| Bulb Base | Integrated LED |
| Dimmable | Yes |
| LED | Yes |
| Light Direction | Down Lighting |
| Number of Light Source(s) | 1 |
| Bubbler Type | LED |
| Color Temperature | 3000K, 2700K |
| Hardscape Light Type | Step Lights |
| Replaceable LED Module | Yes |
| ADA | Yes |
| Country Of Origin | China |
| Manufacturer Warranty | 2 Year Finish, 10 Year Limited |
| Collection | WAC Landscape |
| Certifications | UL |
| Location Rating | Wet Location |
| Title 24 | Yes |
| Dark Sky | No |
| Outdoor Approved | Yes |
| Bulb Included | Yes |
| Power Source | Hardwired |
| Voltage | 12 |
| Voltage Type | Low Voltage (12-24V) |
| Wattage | 2 |
| Watts Per Bulb | 2 |
| Average Hours | 60000 Hours |
| Color Rendering Index (CRI) | 90 |
| Lumens | 38 |
| Color | Black / 2700K |
| Color Tone | Blacks |
