The latest energy efficient LED technology in an appealing cubical profile delivers accent and wall wash lighting. Precise engineering using the latest energy efficient LED technology with a built-in reflector for superior optics. Available in a variety of specifiable light distributions and beam angles.
Features
Driver located inside of fixture with universal input (120v-220v-277v)
Constructed of die cast aluminum
Integrated LED lighting

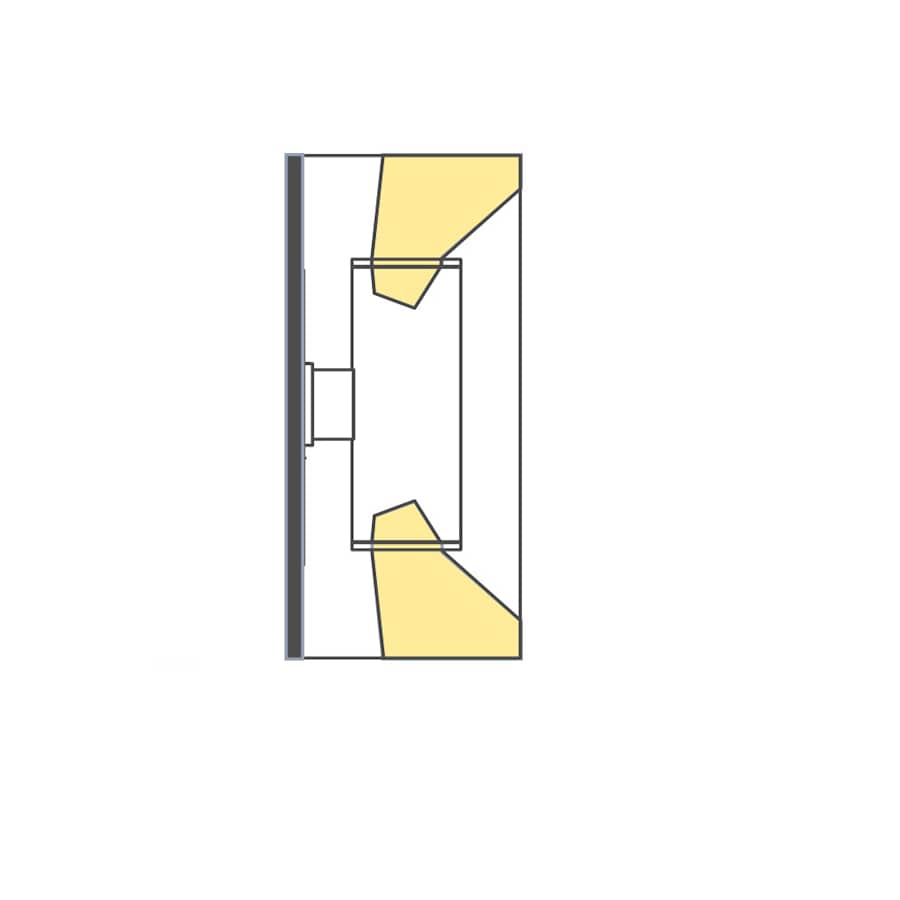

Can be mounted with lights directed upwards or downwards
33° beam spread
Designed for commercial or residential use
Intended for outdoor use
Smooth and continuous dimming with an electronic low voltage (ELV) dimmer
ETL rated for wet locations
Meets California Title 24 energy standards (90CRI versions only)
Covered under a 2 year finish and a 5 year functional manufacturer warranty
Dimensions
Height: 12-1/2″
Width: 4-1/2″
Extension: 7-1/4″
Product Weight: 20.64 lbs
Backplate Height: 4-7/8″
Backplate Width: 4-7/8″
Backplate Depth: 1/2″
Electrical Specifications
Wattage: 53 watts
Number of Light Sources: 2
Lumens: 3630, 3680, 3900, 4310, 4740, or 4890
Color Temperature: 2700K, 3000K, 3500K, or 4000K
Color Rendering Index: 85 or 90CRI
Average Hours: 50000
Voltage: 120, 240, and 277 volts
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting Cube Architectural Collection
Specifications
| Country Of Origin | China |
| Manufacturer Warranty | 5 Year, 2 Year Finish |
| Certifications | ETL |
| Collection | Cube Architectural |
| Location Rating | Wet Location |
| ADA | No |
| Title 24 | Yes |
| Dark Sky | No |
| Outdoor Approved | Yes |
| Height | 12.5 in. |
| Width | 4.5 in. |
| Product Weight | 20.64 lbs. |
| Extension | 7.25 in. |
| Backplate Height | 4.88 in. |
| Base Width | 4.88 in. |
| Backplate Depth | 0.5 in. |
| Nominal Height | 13 in. |
| Nominal Width | 5 in. |
| Beam Spread | 33 Degrees |
| Material | Aluminum |
| Thermostat | Contemporary |
| Bulb Base | Integrated LED |
| Bulb Visible | No |
| Dimmable | Yes |
| Fixture Shape | Rectangle |
| Light Direction | Up / Down Lighting |
| Number of Light Source(s) | 2 |
| Shade Color | White |
| Showerhead Shape | Rectangle |
| Reversible Mounting | Yes |
| Energy Efficient | Yes |
| Full Backplate | No |
| LED | Yes |
| Vintage Edison Bulb | No |
| Bubbler Type | LED |
| Color Temperature | 4000K, 3500K, 3000K, 2700K |
| Shade | No |
| Bulb Included | Yes |
| Power Source | Hardwired |
| Voltage | 120, 277, 240 |
| Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
| Wattage | 53 |
| Average Hours | 50000 Hours |
| Color Rendering Index (CRI) | 85, 90 |
| Lumens | 4740, 4310, 3630, 4890, 3900, 3680 |
| Color | Black / 2700K / 85CRI |
| Color Tone | Blacks |
