Precise engineering using the latest energy efficient LED technology with a built-in reflector for superior optics; An appealing cylindrical profile perfect for accent and wall wash lighting.
Features:
Smooth and continuous dimming with an ELV or 0-10V dimmer
Universal input ready for (120v-220v-277v)
Replaceable integrated LED lighting
Die-cast aluminum construction
Comes with a clear glass diffuser
Designed for commercial or residential use
Intended for outdoor use
ETL and cETL listed for wet locations
California Title 24 energy compliant (90CRI versions)
Covered under WAC Lighting’s 5 year functional and 2 year finish warranties

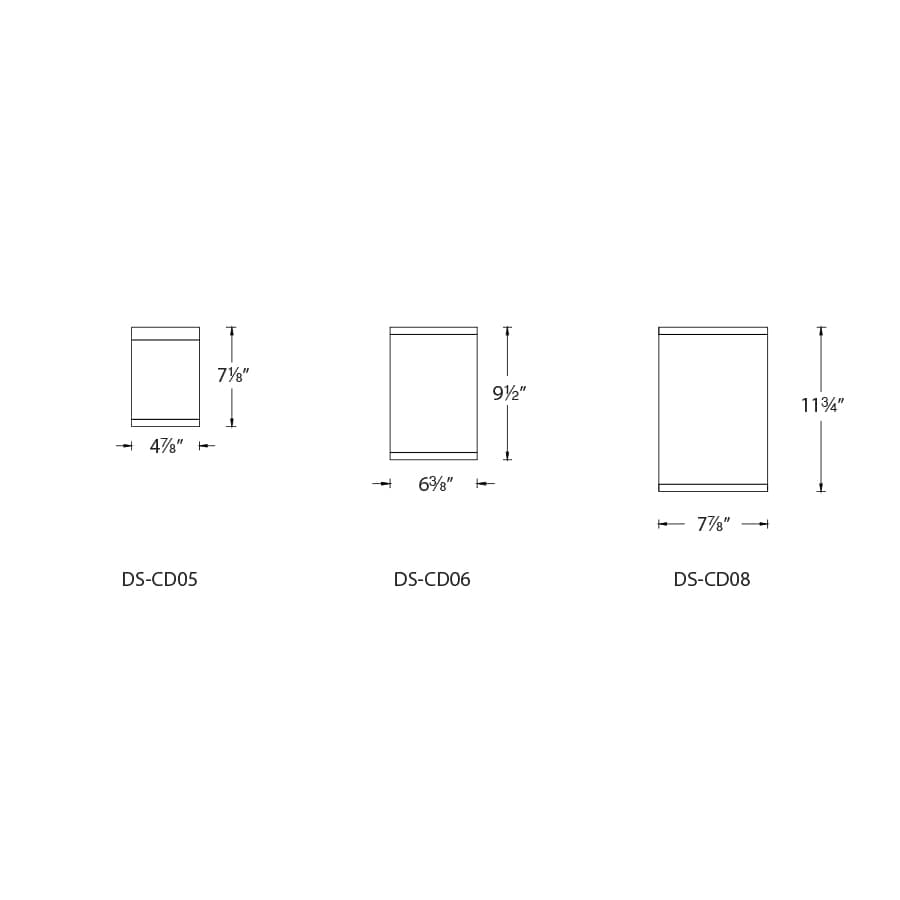

Dimensions:
Height: 7-1/8″
Width: 4-7/8″
Depth: 4-7/8″
Product Weight: 20.82 lbs
Canopy Height: 5/8″
Canopy Width: 4-7/8″
Canopy Depth: 4-7/8″
Beam Spread: 18°
Electrical Specifications:
Wattage: 27 watts
Lumens: 1680, 1700, 1800, 1995, 2190, or 2260
Color Temperature: 2700K, 3000K, 3500K, or 4000K
Color Rendering Index (CRI): 85 or 90CRI
Average Hours: 60000
Voltage: 120, 240, and 277 volts
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting Tube Architectural Collection
Specifications
| Product Weight | 20.82 lbs. |
| Width | 4.88 in. |
| Height | 7.13 in. |
| Depth | 4.88 in. |
| Nominal Width | 5 in. |
| Canopy Depth | 4.88 in. |
| Canopy Width | 4.88 in. |
| Canopy Height | 0.63 in. |
| Nominal Height | 7 in. |
| Beam Spread | 18 Degrees |
| Material | Aluminum |
| Thermostat | Modern |
| Bulb Base | Integrated LED |
| Bubbler Type | LED |
| Bulb Visible | No |
| Dimmable | Yes |
| Glass Features | Clear Glass |
| Light Direction | Down Lighting |
| Number of Light Source(s) | 1 |
| Shade Color | Clear |
| Shell Material | Glass |
| Showerhead Shape | Disk |
| Vintage Edison Bulb | No |
| Sloped Ceiling Compatible | Yes |
| LED | Yes |
| Color Temperature | 2700K, 3000K, 3500K, 4000K |
| Collection | Tube Architectural |
| Country Of Origin | China |
| Manufacturer Warranty | 2 Year Finish, 5 Year Mechanical |
| Certifications | ETL |
| Location Rating | Wet Location |
| Title 24 | No, Yes |
| Outdoor Approved | Yes |
| Bulb Included | Yes |
| Shade | Yes |
| Wattage | 27 |
| Voltage | 120, 240, 277 |
| Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
| Power Source | Hardwired |
| Lumens | 1680, 1700, 1800, 1995, 2190, 2260 |
| Average Hours | 60000 Hours |
| Color Rendering Index (CRI) | 85, 90 |
| Color | Black / 2700K / 85CRI |
| Color Tone | Blacks |
