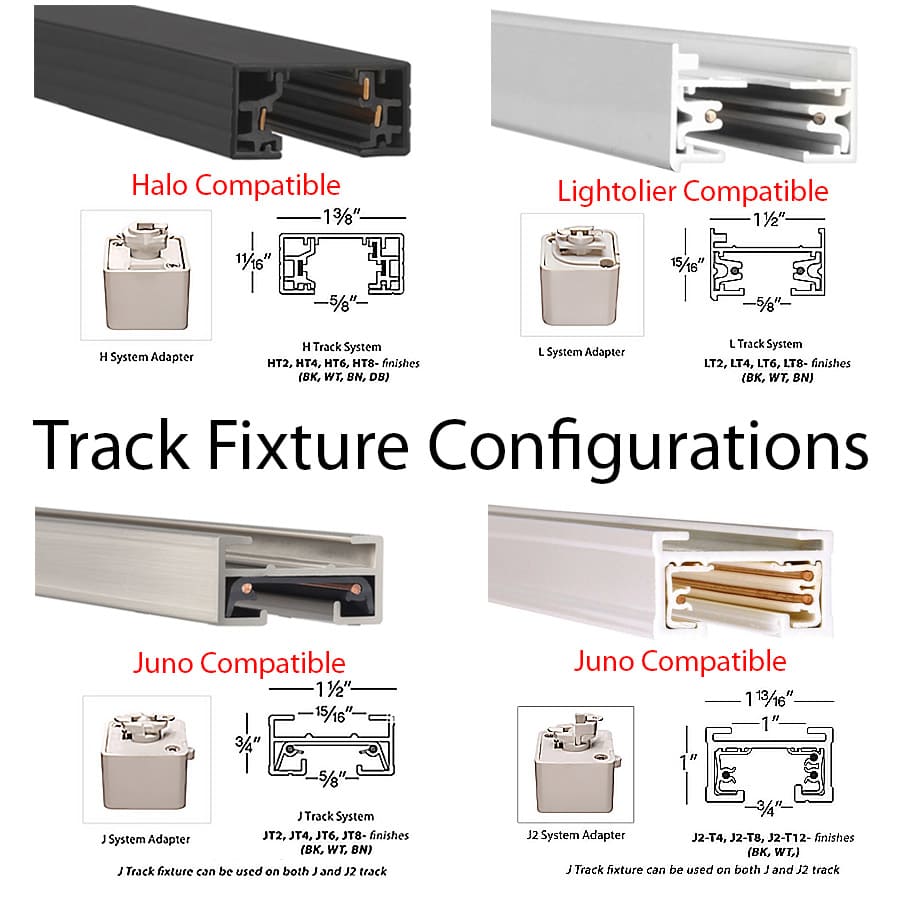

Precision series track heads are the perfect replacements for halogen MR16’s as they offer lower wattage with superior lumen output, over 10 times the rated life span, and less maintenance. The Precision LED collection was developed for upscale residential and commercial environments, with superior illumination, in a compact design. Title 24 Compliant (90CRI Version), the precision compares to a 65W MR16. For use with 120V track. Track Fixture is available in H, J/J2, and L track configurations. Order according to track layout specifications.
Features
Features 360° horizontal rotation and 180° vertical aiming
Accepts one additional lens accessory (not included)
Free of projected heat, UV, and IR radiation
Lockable vertical aiming for precise adjustments
Designed for commercial or residential use
Durable die-cast aluminum construction
Integrated LED lighting
40° beam spread
Smooth and continuous dimming to 10% with an ELV dimmer
UL, CUL, and ETL rated for dry locations
Compliant with California Title 24 energy standards (for 90CRI only)
Covered under WAC Lighting’s 5 year functional and 2 year finish warranties
Dimensions
Height: 5-9/16″
Width: 5-5/16″
Depth: 2-1/4″
Product Weight: 1.8 lbs
Track Lighting Specifications
System Type: H-Track
Accessory Type: Heads
Voltage Type: Line Voltage
Transformer Wattage: 14.5
Electrical Specifications
Wattage: 14.5 watts
Lumens: 975
Color Temperature: 2700K, 3000K, 3500K, or 4000K
Color Rendering Index: 85 or 90CRI
Average Hours: 70000
Watt Replacement: 65 watts
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting Precision LED160 Collection
Specifications
| Depth | 2.25 in. |
| Product Weight | 1.8 lbs. |
| Width | 5.31 in. |
| Height | 5.56 in. |
| Nominal Width | 5 in. |
| Nominal Height | 6 in. |
| Beam Spread | 40 Degrees |
| Bulb Base | Integrated LED |
| Bubbler Type | LED |
| Bulb Visible | No |
| Light Direction | Adjustable Lighting |
| Number of Light Source(s) | 1 |
| Thermostat | Modern |
| Dimmable | Yes |
| Material | Aluminum |
| LED | Yes |
| Energy Efficient | Yes |
| Adjustable | Yes |
| Color Temperature | 4000K, 3500K, 2700K, 3000K |
| Accessory Type | Heads |
| System Type | H-Track |
| Power Source | Hardwired |
| Wattage | 14.5 |
| Voltage | 120 |
| Voltage Type | Line Voltage (110-120V) |
| Average Hours | 70000 Hours |
| Color Rendering Index (CRI) | 90, 85 |
| Lumens | 975 |
| Watt Replacement | 65 |
| Collection | Precision LED160 |
| Certifications | ETL, UL |
| Country Of Origin | China |
| Location Rating | Dry Location |
| Manufacturer Warranty | 2 Year Finish, 5 Year Mechanical |
| Title 24 | Yes |
| Bulb Included | Yes |
| Color | Black / 2700K / 85CRI |
| Color Tone | Blacks |
