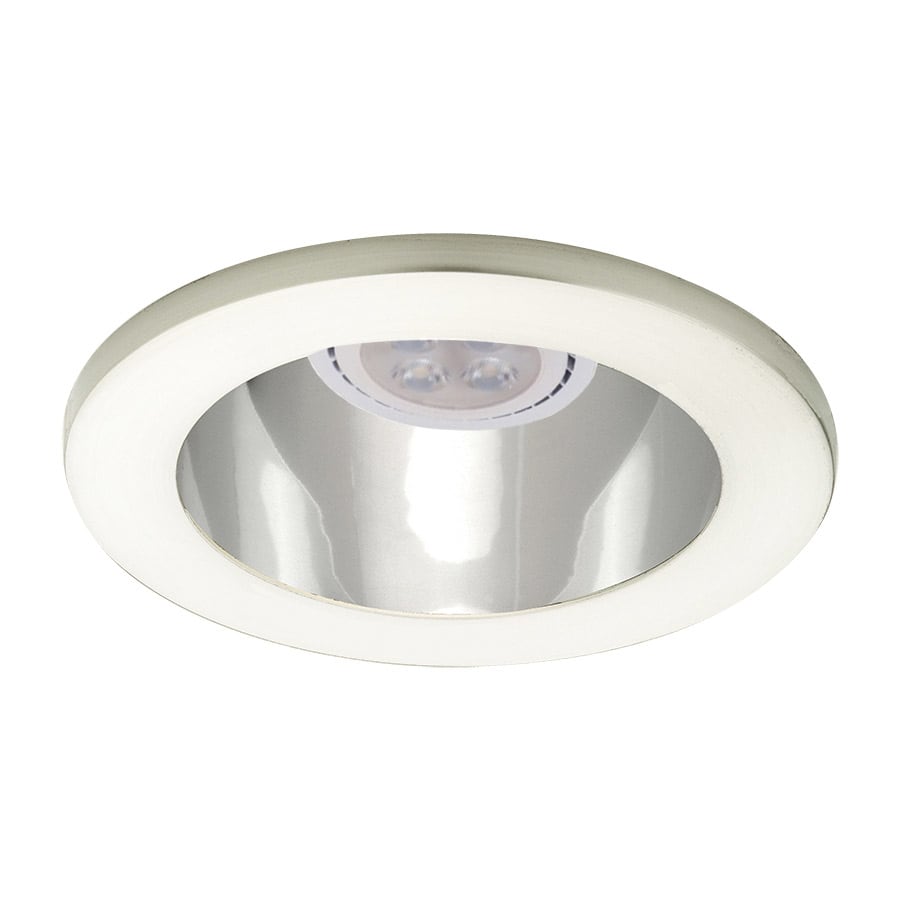

Engineered for high performance in a compact fixture, 4 inch Low Voltage Recessed Downlights are styled with form and function.
Features
35 degree adjustment from vertical recessed downlight
Includes retention clips to secure firmly into housing
Simple to install, compatible with any WAC HR-8400 low voltage housing or existing 4in recessed retrofit
Solid aluminum construction for maximum durability and minimum product weight

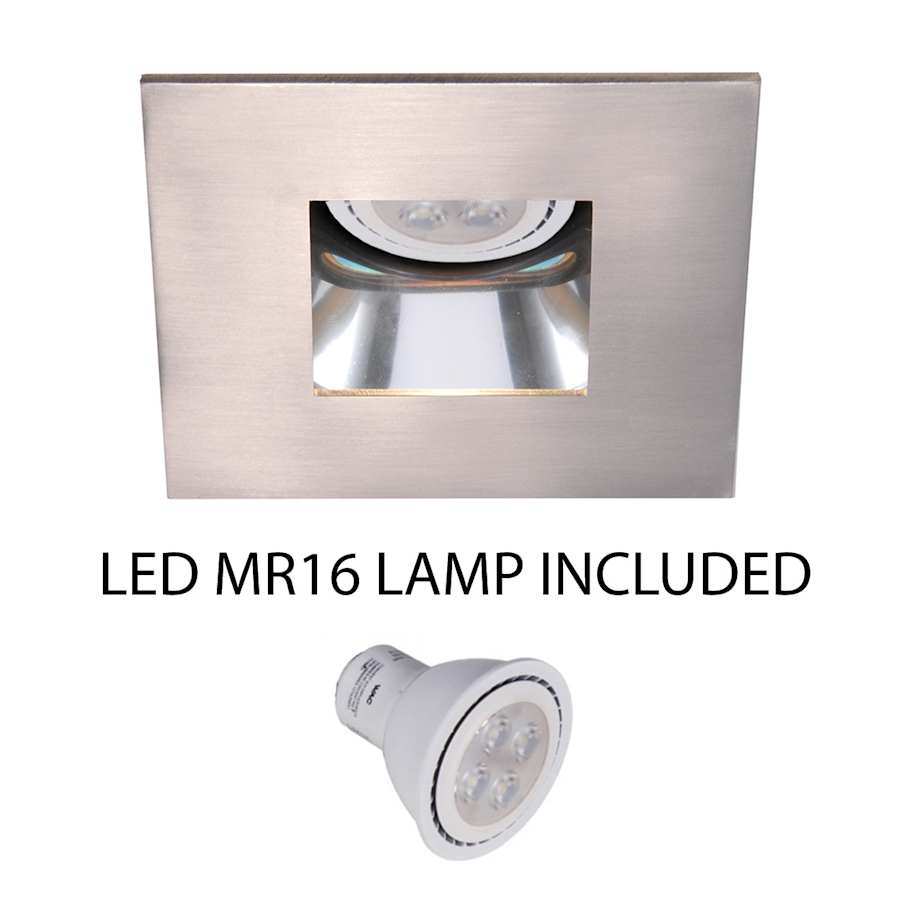

Includes (1) bi pin LED bulb
Smooth and continuous dimming with an electronic low voltage (ELV)
UL and CUL rated for damp locations
Meets California Title 24 energy standards
2 Year finish and 5 year mechanical manufacturer warranty

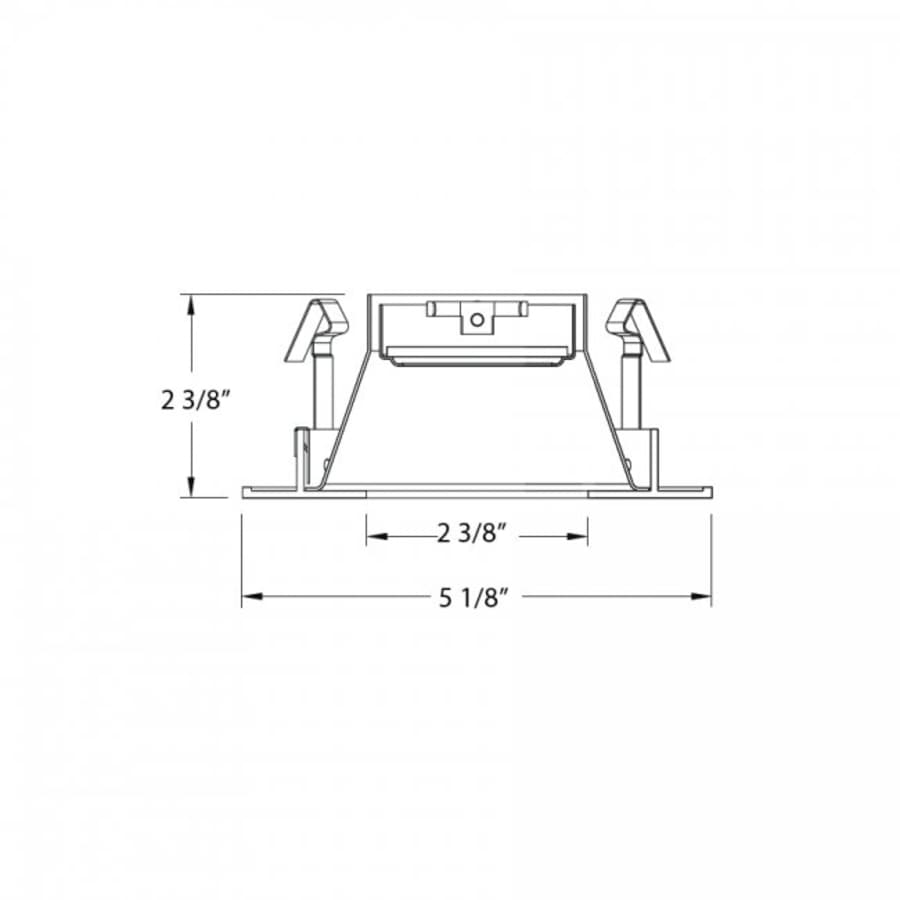

Dimensions
Trim Size: 5″
Height: 1/4″
Width: 5-1/8″
Depth: 5-1/8″
Product Weight: 0.42 lbs
Cutout Size: 4-3/8″
Beam Spread: 45°
Electrical Specifications
Max Wattage: 8 watts
Number of Bulbs: 1
Lumens: 450
Bulb Base: Bi Pin
Bulb Shape: MR16
Bulb Type: LED
Color Temperature: 3000K
Color Rendering Index: 90CRI
Average Hours: 25000
Voltage: 12 volts
Bulb Included: Yes
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting WAC Collection
Specifications
| Depth | 5.13 in. |
| Product Weight | 0.42 lbs. |
| Width | 5.13 in. |
| Height | 0.25 in. |
| Trim Size | 5 in. |
| Beam Spread | 45 Degrees |
| Cutout Size | 4.38 in. |
| Bulb Base | Bi Pin |
| Bubbler Type | LED |
| Bulb Visible | Yes |
| Light Direction | Down Lighting |
| Number of Bulbs | 1 |
| Number of Light Source(s) | 1 |
| Thermostat | Modern, Transitional |
| Bulb Shape | MR16 |
| Dimmable | Yes |
| Material | Aluminum |
| Sloped Ceiling Compatible | Yes |
| LED | Yes |
| Color Temperature | 3000K |
| Vintage Edison Bulb | No |
| Trim Style | Adjustable Trims, Reflector Trims |
| Wattage | 8 |
| Voltage | 12 |
| Voltage Type | Low Voltage (12-24V) |
| Average Hours | 25000 Hours |
| Color Rendering Index (CRI) | 90 |
| Lumens | 450 |
| Collection | WAC |
| Certifications | UL |
| Country Of Origin | China |
| Location Rating | Damp Location |
| Manufacturer Warranty | 5 Year Mechanical, 2 Year Finish |
| Series | WAC Limited |
| Title 24 | Yes |
| Energy Star | No |
| Bulb Included | Yes |
| Color | Brushed Nickel / Clear |
| Color Tone | Nickel Tones |
