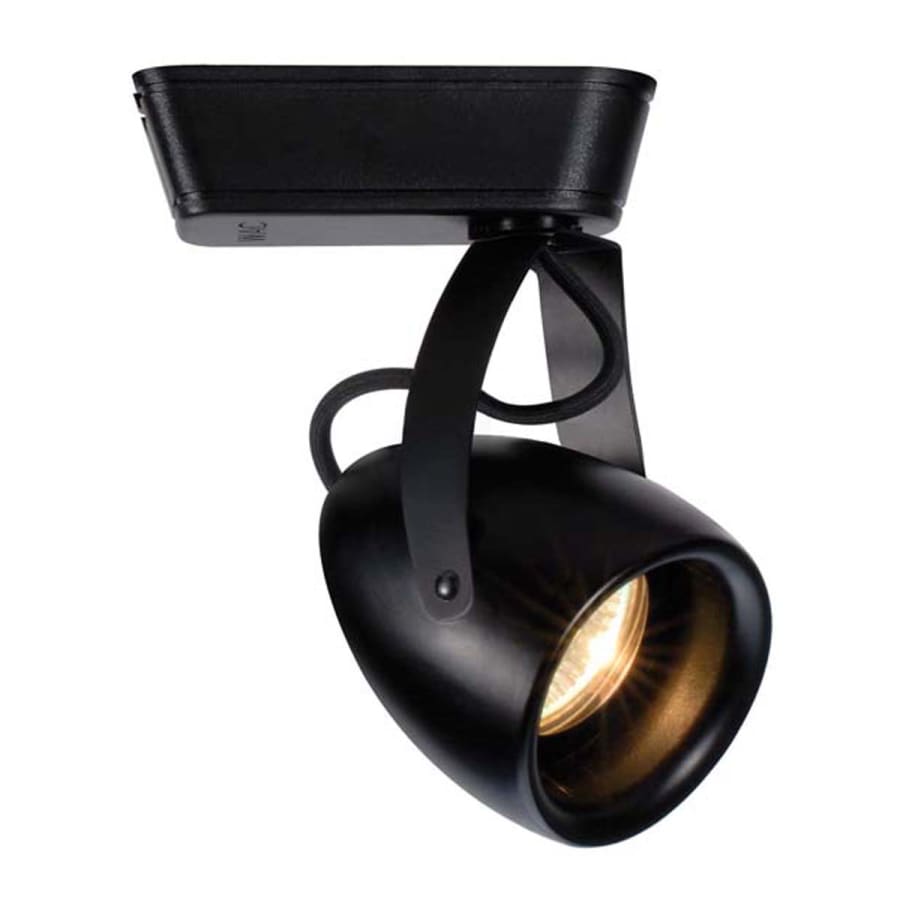

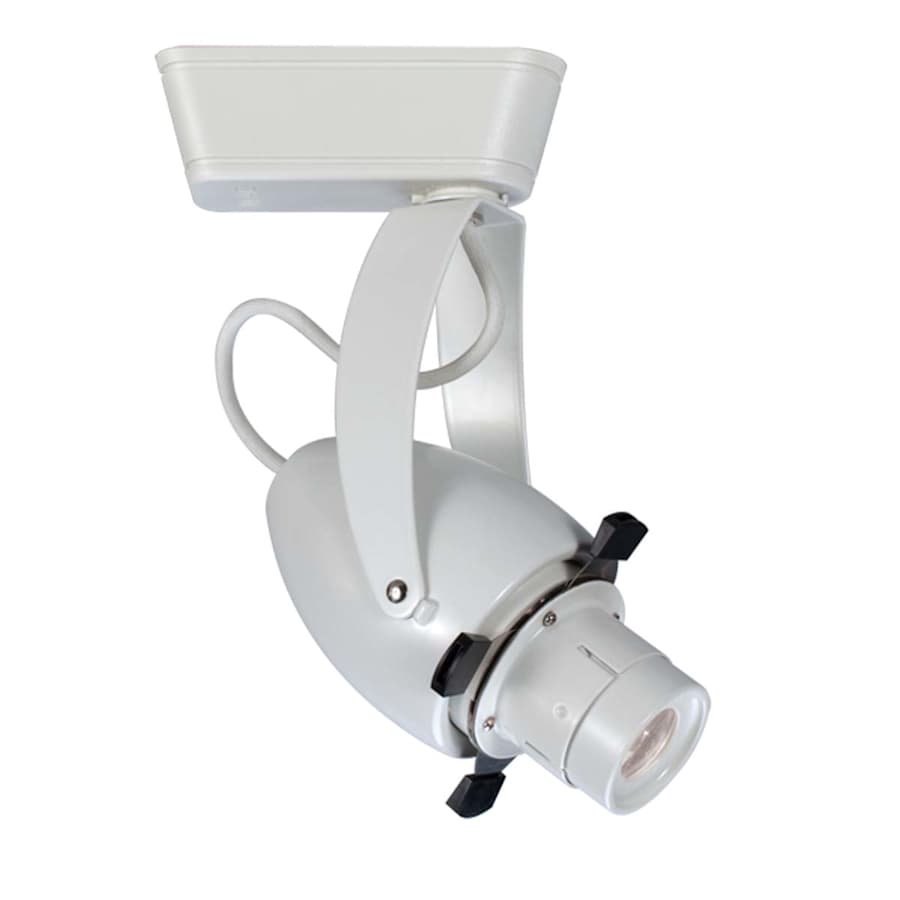

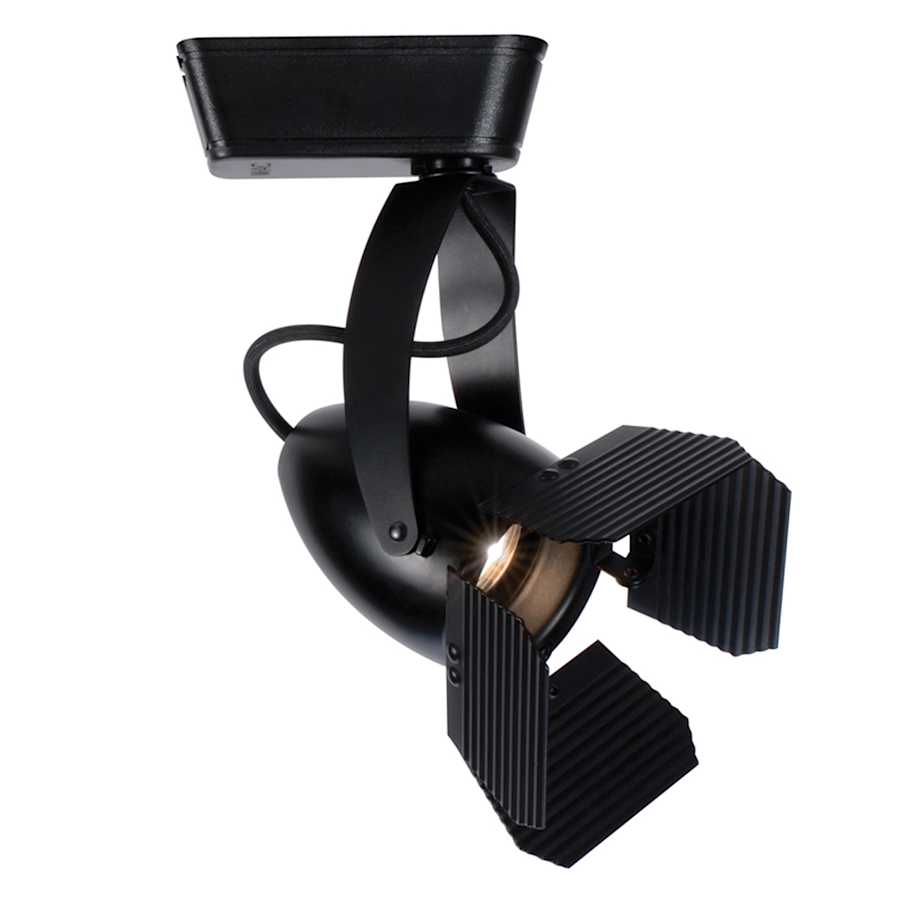

Impulse uses an integrated multi-chip LED. Robustly engineered from solid die-cast aluminum, this thermally efficient luminaire offers architectural lighting options including a framing projector and barn door accessories. Spot and flood beam spreads and two color temperatures make this an all-in-one choice for lighting. For use with 120V track. Track Fixture is available in H, J/J2, and L track configurations. Order according to track layout specifications. Available in 14W and 23W options.
Features
360° horizontal rotation and 180° vertical aiming
Die-cast aluminum construction
Integrated LED lighting
40° beam spread
Smooth and continuous dimming to 10% with an ELV dimmer
ETL rated for dry locations
California Title 24 energy compliant (90CRI only)
Covered under WAC Lighting’s 5 year functional and 2 year finish warranties

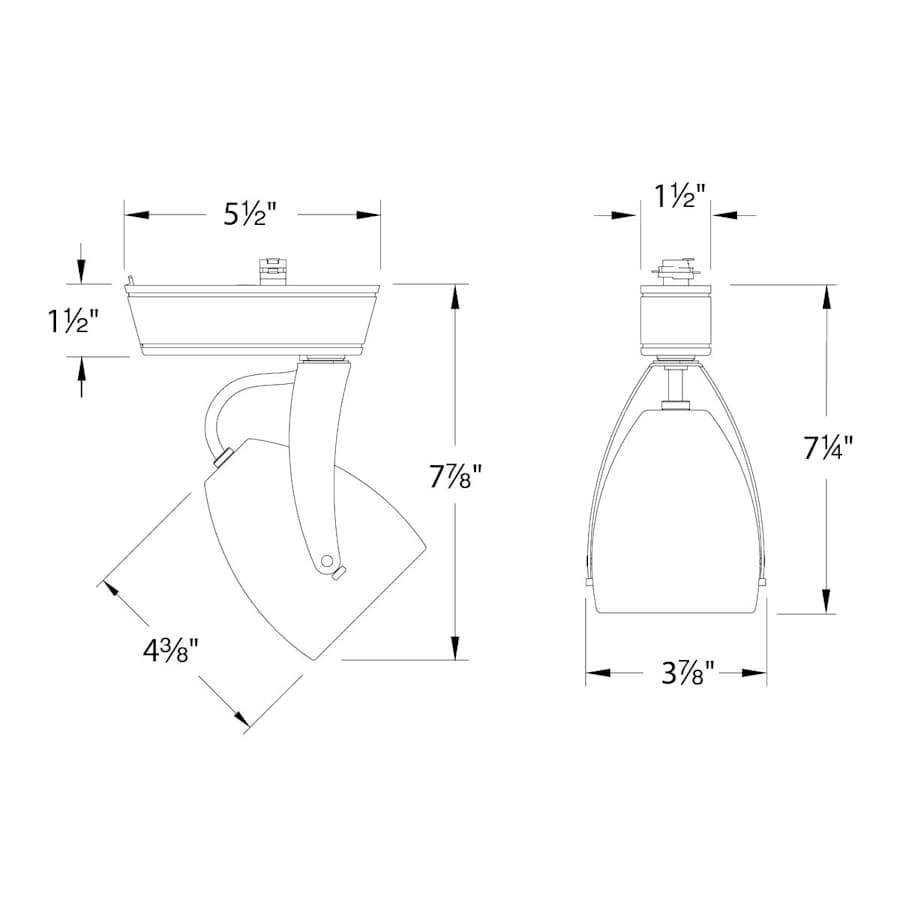

Dimensions
Height: 7-7/8″
Width: 4-3/8″
Depth: 3-7/8″
Product Weight: 1.95 lbs
Track Lighting Specifications
System Type: J-Track
Accessory Type: Heads
Voltage Type: Line Voltage
Transformer Wattage: 23
Electrical Specifications
Wattage: 23 watts
Lumens: 1210, 1315, 1340, 1355, 925, or 995
Color Temperature: 2700K, 3000K, 3500K, or 4000K
Color Rendering Index: 85 or 90CRI
Average Hours: 60000
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting Impulse Collection
Specifications
| Depth | 3.88 in. |
| Height | 7.88 in. |
| Product Weight | 1.95 lbs. |
| Width | 4.38 in. |
| Length | 4.38 in. |
| Nominal Height | 8 in. |
| Nominal Width | 4 in. |
| Beam Spread | 40 Degrees |
| Material | Aluminum |
| Adjustable | Yes |
| Thermostat | Contemporary |
| Bulb Base | Integrated LED |
| Bulb Visible | No |
| Dimmable | Yes |
| Light Direction | Adjustable Lighting |
| Number of Bulbs | 1 |
| Number of Light Source(s) | 1 |
| Shade Color | Black, Bronze, White |
| Shell Material | Metal |
| Showerhead Shape | Tapered |
| Bubbler Type | LED |
| LED | Yes |
| Color Temperature | 2700K, 3000K, 3500K, 4000K |
| Energy Efficient | Yes |
| Accessory Type | Heads |
| System Type | J2-Track, J-Track |
| Collection | Impulse |
| Country Of Origin | China |
| Manufacturer Warranty | 5 Year Mechanical, 2 Year Finish |
| Certifications | ETL, UL |
| Location Rating | Dry Location |
| Title 24 | Yes |
| Bulb Included | Yes |
| Shade | No |
| Power Source | Hardwired |
| Voltage | 120 |
| Voltage Type | Line Voltage (110-120V) |
| Wattage | 23 |
| Watts Per Bulb | 23 |
| Lumens | 1210, 1315, 1340, 1355, 925, 995 |
| Average Hours | 60000 Hours |
| Color Rendering Index (CRI) | 85, 90 |
| Color | Black / 2700K / 85CRI |
| Color Tone | Blacks |
