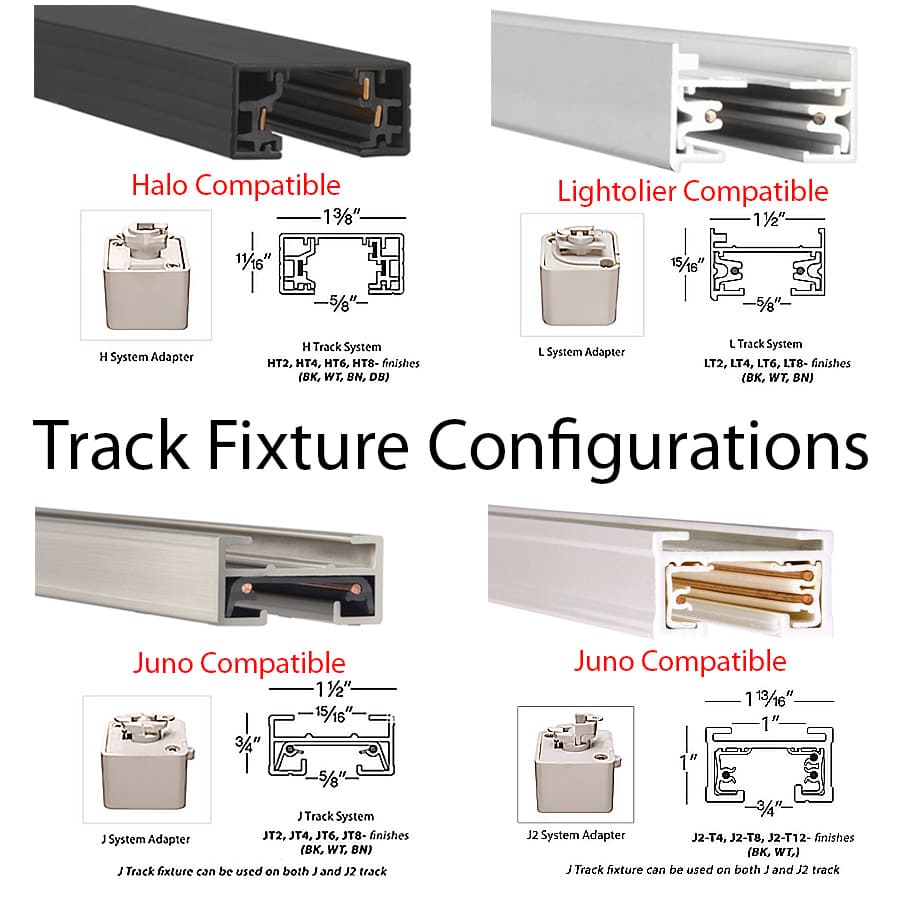

Low Voltage track fixture offered in a wide variety of styles and finishes for a multitude of lighting applications in residential, retail, commercial and hospitality environments. Available in H, J/J2, and L style track configurations. Built-in transformer has a 1W minimum load and can be installed with an LED lamp.
Features
350° horizontal rotation and 90° vertical tilt
Swivel yoke for easy aiming
Recessed lamp position and baffle for minimal glare
Additional accessories available
Durable aluminum construction
Requires (1) 12 volt, 75 watt GU5.3 base MR16 bulb
Smooth and continuous dimming to 10% with an ELV Dimmer
UL and CUL rated for dry locations
Covered under 5 year functional and 2 year finish manufacturer warranties

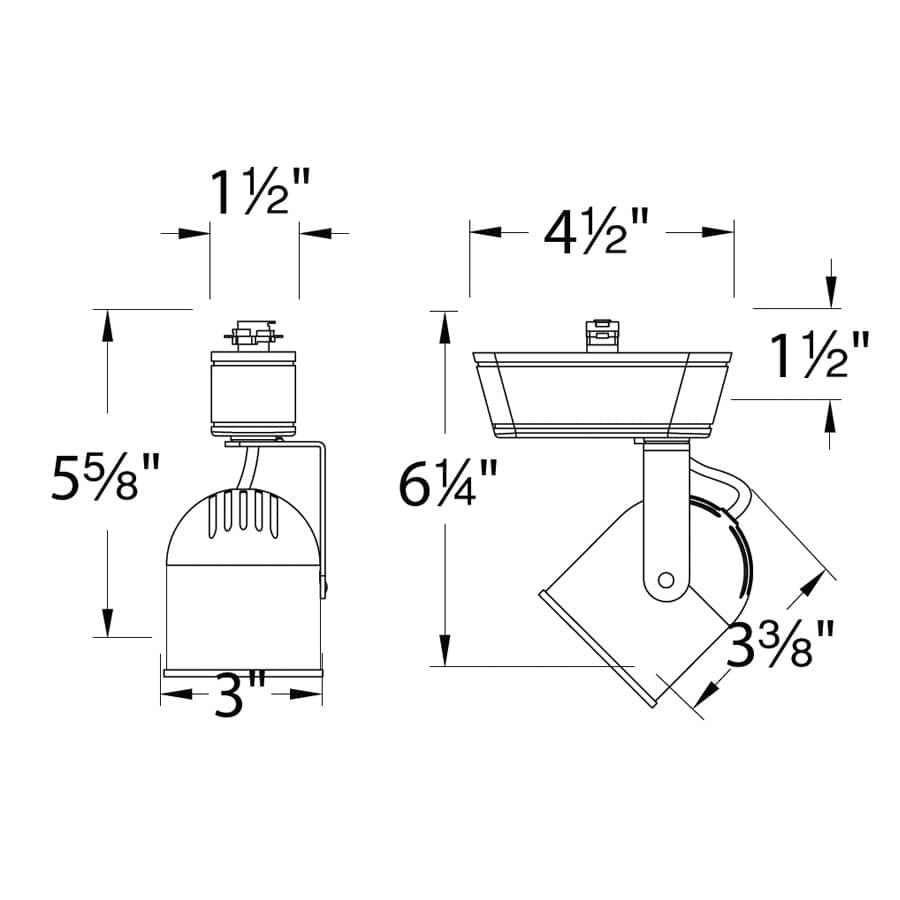

Dimensions
Height: 6-1/4″
Width: 3-3/8″
Depth: 2-3/4″
Product Weight: 1.1 lbs
Track Lighting Specifications
System Type: L-Track
Accessory Type: Heads
Voltage Type: Low Voltage
Electrical Specifications
Max Wattage: 75 watts
Number of Bulbs: 1
Max Watts Per Bulb: 75 watts
Bulb Voltage: 12
Bulb Base: GU5.3
Bulb Shape: MR16
Bulb Included: No
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting HT-808 Collection
Specifications
| Depth | 2.75 in. |
| Height | 6.25 in. |
| Width | 3.39 in. |
| Product Weight | 1.1 lbs. |
| Nominal Height | 6 in. |
| Material | Aluminum |
| Bulb Base | GU5.3 |
| Light Direction | Adjustable Lighting |
| Number of Bulbs | 1 |
| Number of Light Source(s) | 1 |
| Dimmable | Yes |
| Bulb Shape | MR16 |
| LED | No |
| Adjustable | Yes |
| Accessory Type | Heads |
| System Type | L-Track |
| Collection | HT-808 |
| Series | WAC Limited |
| Country Of Origin | China |
| Manufacturer Warranty | 5 Year Mechanical, 2 Year Finish |
| Certifications | UL |
| Location Rating | Dry Location |
| Power Source | Hardwired |
| Voltage | 120 |
| Voltage Type | Line Voltage (110-120V) |
| Wattage | 75 |
| Watts Per Bulb | 75 |
| Bulb Included | No |
| Color | Black |
| Color Tone | Blacks |
