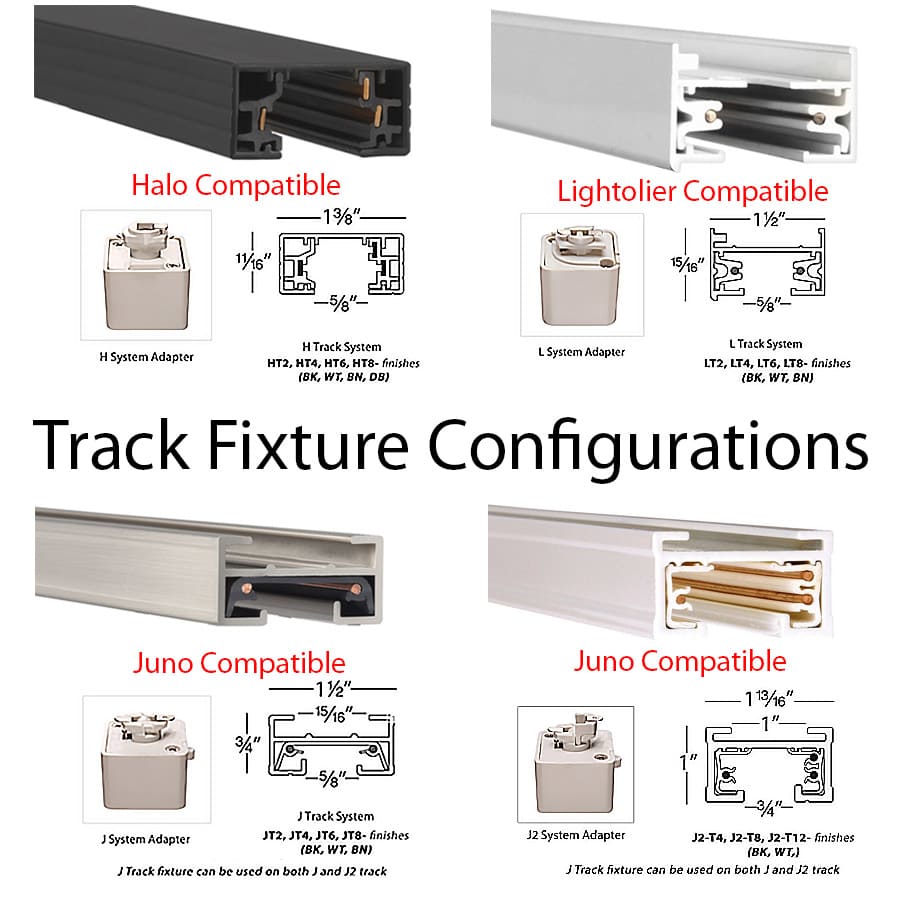

Low Voltage track fixture offered in a wide variety of styles and finishes for a multitude of lighting applications in residential, retail, commercial and hospitality environments. Available in H, J/J2, and L style track configurations. Built-in transformer has a 1W minimum load and can be installed with an LED lamp.
Features
350° horizontal rotation and 90° vertical tilt
Swivel yoke for easy aiming
Includes a mesh back vent for heat dissipation
Additional accessories available
Die-cast aluminum construction
Requires (1) 12 volt, 75 watt GU5.3 base MR16 bulb
Smooth and continuous dimming to 10% with an ELV Dimmer
UL and CUL rated for dry locations
Covered under 5 year functional and 2 year finish manufacturer warranties

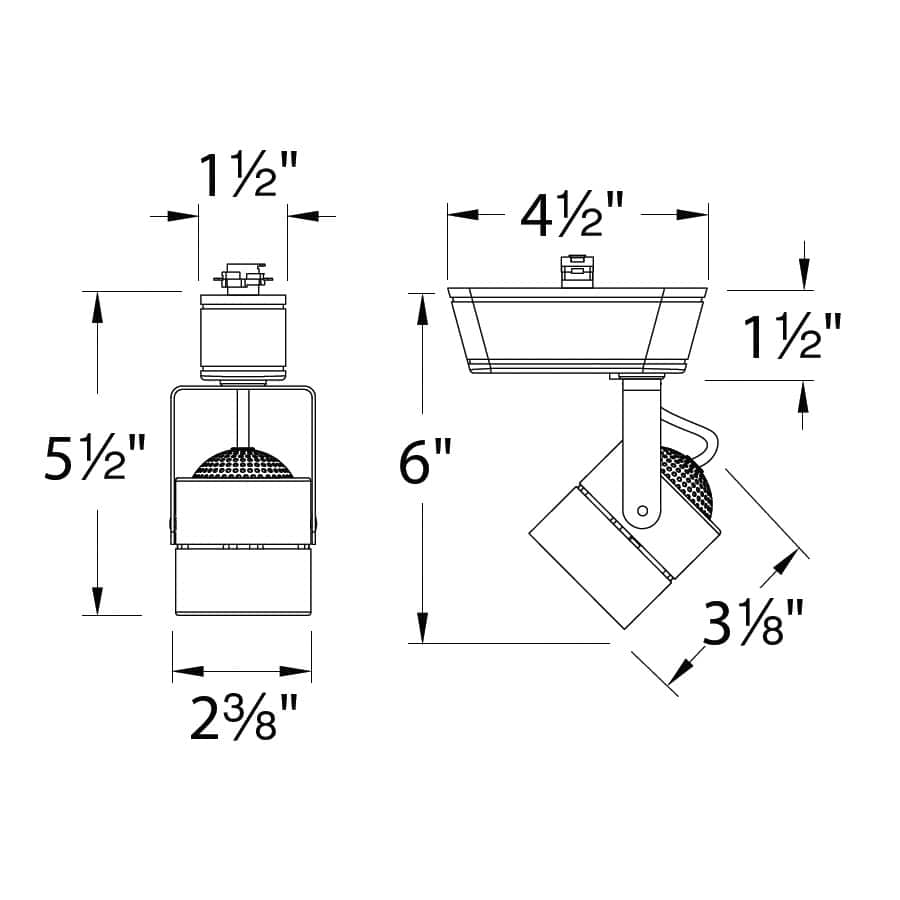

Dimensions
Height: 6″
Width: 3-1/8″
Depth: 2-3/8″
Product Weight: 1.05 lbs
Track Lighting Specifications
System Type: L-Track
Accessory Type: Heads
Voltage Type: Low Voltage
Electrical Specifications
Max Wattage: 75 watts
Number of Bulbs: 1
Max Watts Per Bulb: 75 watts
Bulb Voltage: 12
Bulb Base: GU5.3
Bulb Shape: MR16
Bulb Included: No
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting HT-809 Collection
Specifications
| Depth | 2.39 in. |
| Height | 6 in. |
| Product Weight | 1.05 lbs. |
| Width | 3.13 in. |
| Nominal Height | 6 in. |
| Material | Aluminum |
| Light Direction | Adjustable Lighting |
| Number of Bulbs | 1 |
| Number of Light Source(s) | 1 |
| Bulb Base | GU5.3 |
| Dimmable | Yes |
| LED | No |
| Bulb Shape | MR16 |
| Adjustable | Yes |
| Accessory Type | Heads |
| System Type | L-Track |
| Collection | HT-809 |
| Country Of Origin | China |
| Manufacturer Warranty | 5 Year Mechanical, 2 Year Finish |
| Series | WAC Limited |
| Certifications | UL |
| Location Rating | Dry Location |
| Voltage | 120 |
| Power Source | Hardwired |
| Wattage | 75 |
| Watts Per Bulb | 75 |
| Voltage Type | Line Voltage (110-120V) |
| Bulb Included | No |
| Color | Black |
| Color Tone | Blacks |
