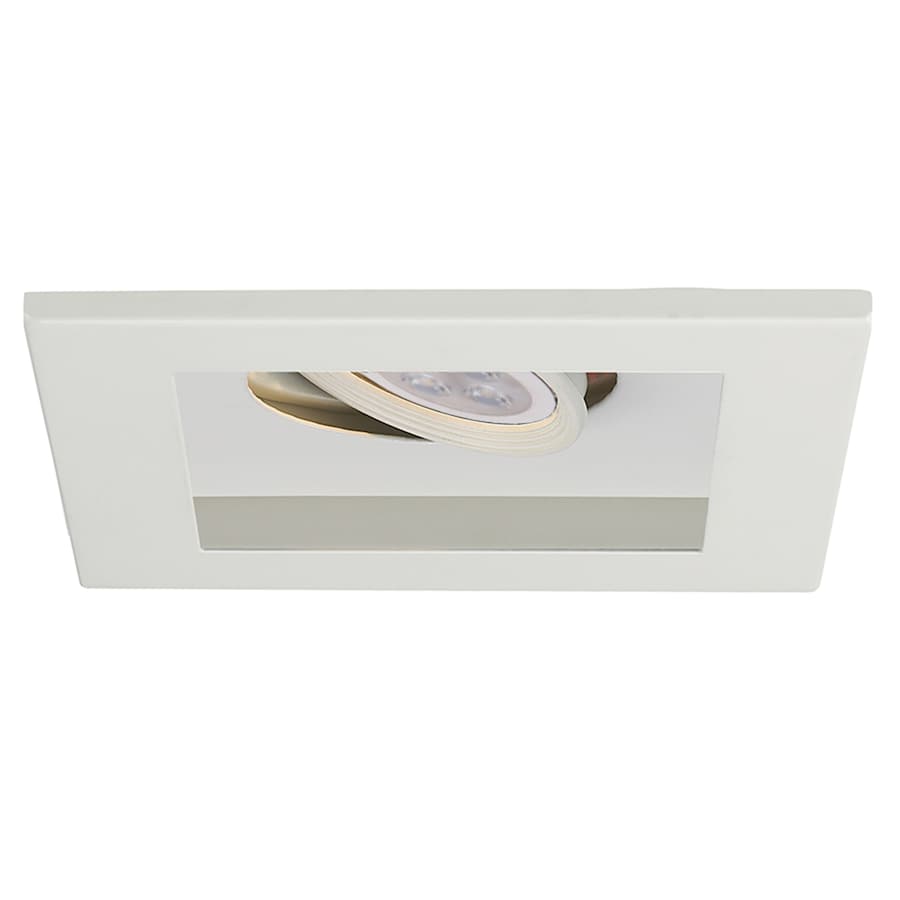

Low Voltage Multiple Spots are ideal for perimeter lighting applications in smaller scale retail, commercial and hospitality environments.
Features
Gimbal style trim allows for 25 degree adjustment from vertical, and 350 degree rotation
Includes retention clips to secure firmly into housing
Simple to install, available in single, two light, and three light options
Designed for commercial or residential use
Housing is not rated for insulated ceilings
Solid aluminum construction for maximum durability and minimum product weight

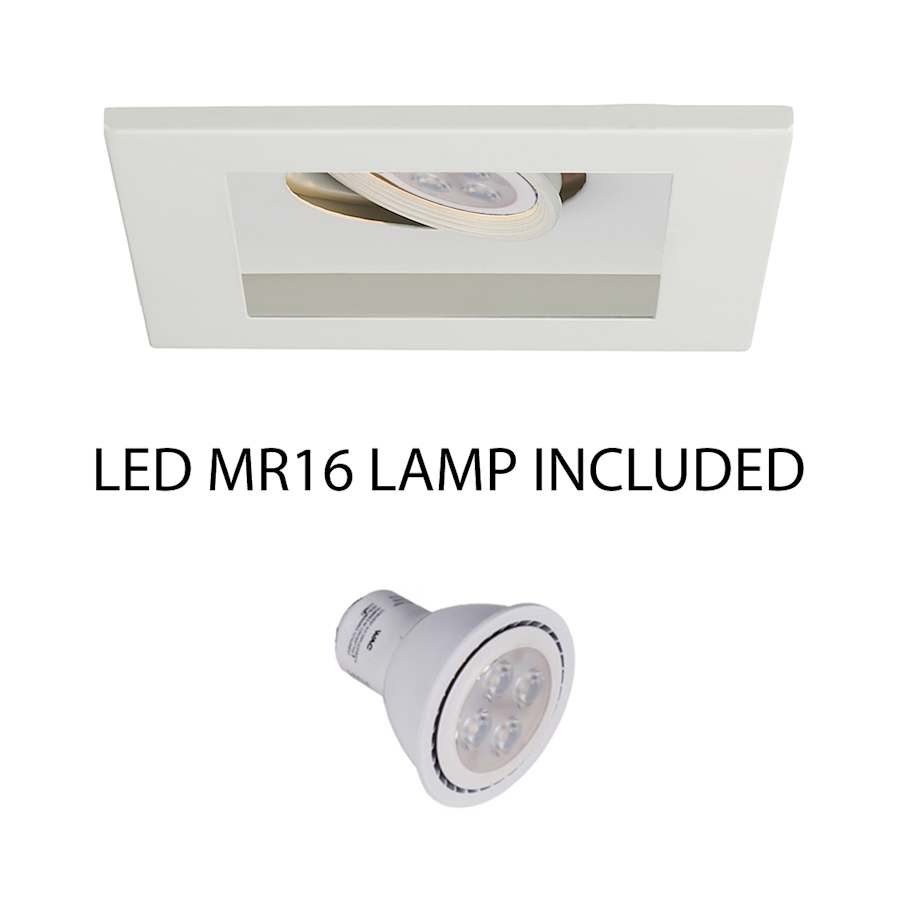

Includes (1) bi pin LED bulb
Smooth and continuous dimming with an electronic low voltage (ELV)
UL and CUL rated for damp locations
Compliant with California Title 24 energy standards
2 Year finish and 5 year mechanical manufacturer warranty

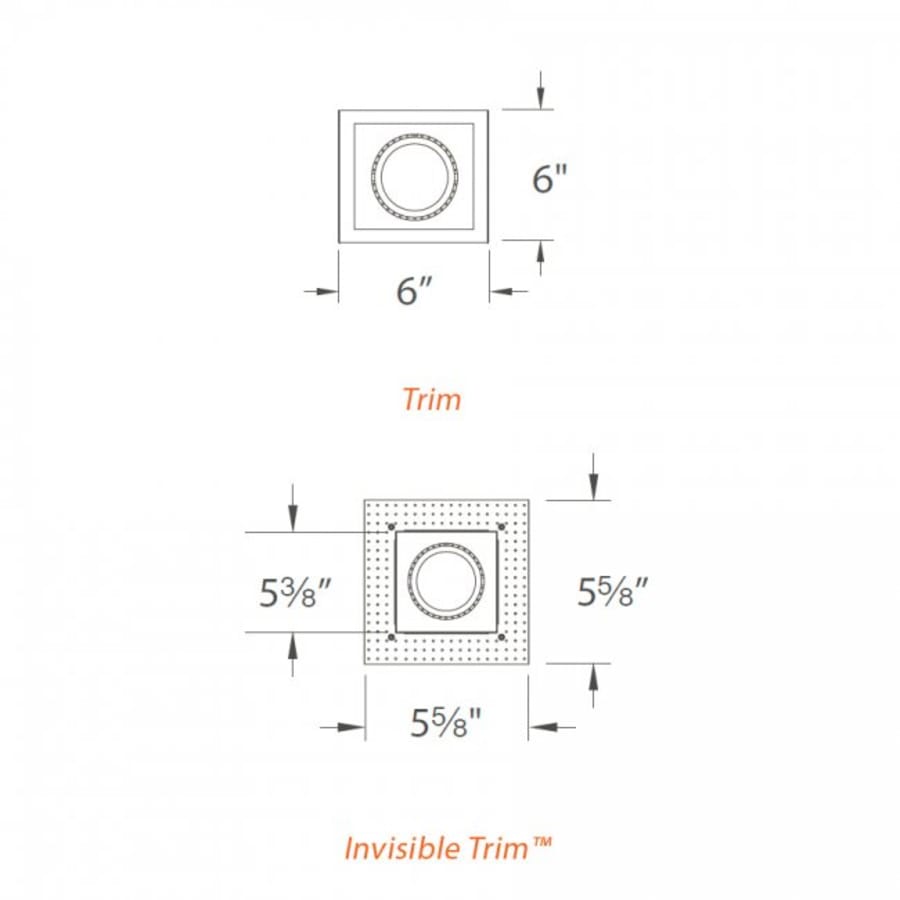

Dimensions
Trim Size: 6″
Height: 1/4″
Width: 6″
Depth: 6″
Product Weight: 0.87 lbs
Cutout Size: 5-3/8″
Beam Spread: 40°
Electrical Specifications
Max Wattage: 8 watts
Number of Bulbs: 1
Lumens: 450
Bulb Base: Bi Pin
Bulb Shape: MR16
Bulb Type: LED
Color Temperature: 3000K
Color Rendering Index: 90CRI
Average Hours: 25000
Voltage: 12 volts
Bulb Included: Yes
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting WAC Collection
Specifications
| Material | Aluminum, Galvanized Steel, Metal |
| Bulb Base | Bi Pin |
| Bubbler Type | LED |
| Bulb Visible | Yes |
| Color Temperature | 3000K |
| Dimmable | Yes |
| LED | Yes |
| Light Direction | Adjustable Lighting |
| Number of Light Source(s) | 1 |
| Thermostat | Modern, Transitional |
| Bulb Shape | MR16 |
| Number of Bulbs | 1 |
| Vintage Edison Bulb | No |
| Sloped Ceiling Compatible | Yes |
| Adjustable | Yes |
| Trim Style | Square Trims, Adjustable Trims |
| Collection | WAC |
| Country Of Origin | China |
| Certifications | UL |
| Location Rating | Damp Location |
| Manufacturer Warranty | 5 Year Mechanical, 2 Year Finish |
| Title 24 | Yes |
| Series | WAC Limited |
| Energy Star | No |
| IC Rating | Non-IC |
| Height | 0.25 in. |
| Product Weight | 0.87 lbs. |
| Width | 6 in. |
| Depth | 6 in. |
| Beam Spread | 40 Degrees |
| Trim Size | 6 in. |
| Cutout Size | 5.38 in. |
| Bulb Included | Yes |
| Color Rendering Index (CRI) | 90 |
| Lumens | 450 |
| Voltage | 12 |
| Voltage Type | Low Voltage (12-24V) |
| Wattage | 8 |
| Average Hours | 25000 Hours |
| Color | White / White |
| Color Tone | Whites |
