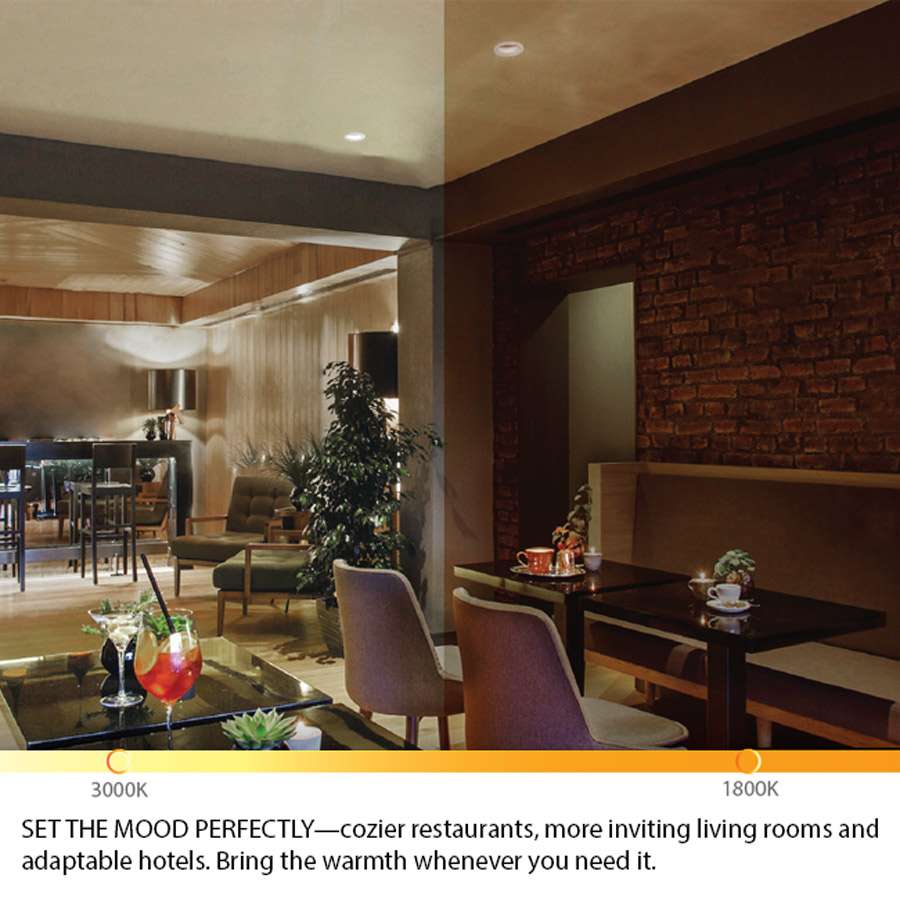

Oculux Dim to Warm is an LED recessed downlight that replicates how a true incandescent lamp dims solving a long time dilemma of monotonous LED’s. Oculux Dim to Warm supports circadian rhythm patterns which contribute to physical, mental, and behavioral health, making it the ideal recessed downlight for applications in residential, restaurants, hotels, and assisted living.
Features
Trim and LED light engine are sold as a complete unit
Available in round or square open reflector and adjustable trim options
35° visual cutoff provides superb glare reduction
Housings are sold separately, available in an IC-Rated Airtight (R3BNICA-10 for 120 or R3BNICA-10U for Universal) new construction or IC-Rated remodel (R3BBRT-10)
Constructed of die cast aluminum
Integrated LED lighting

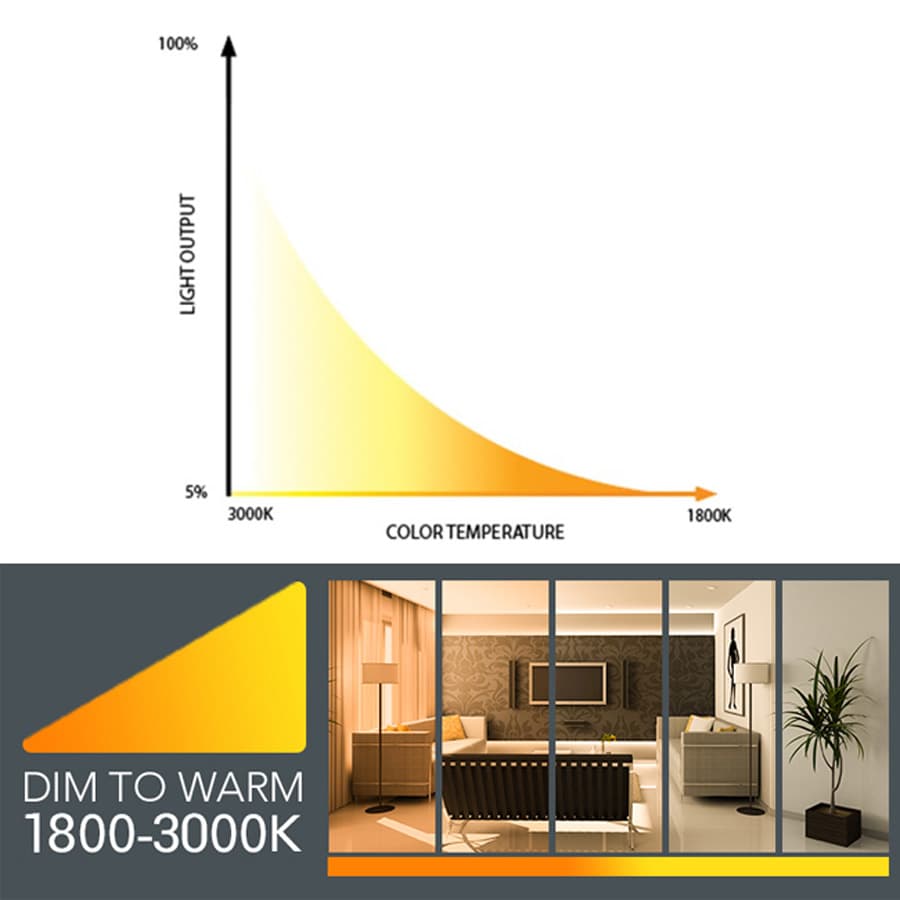

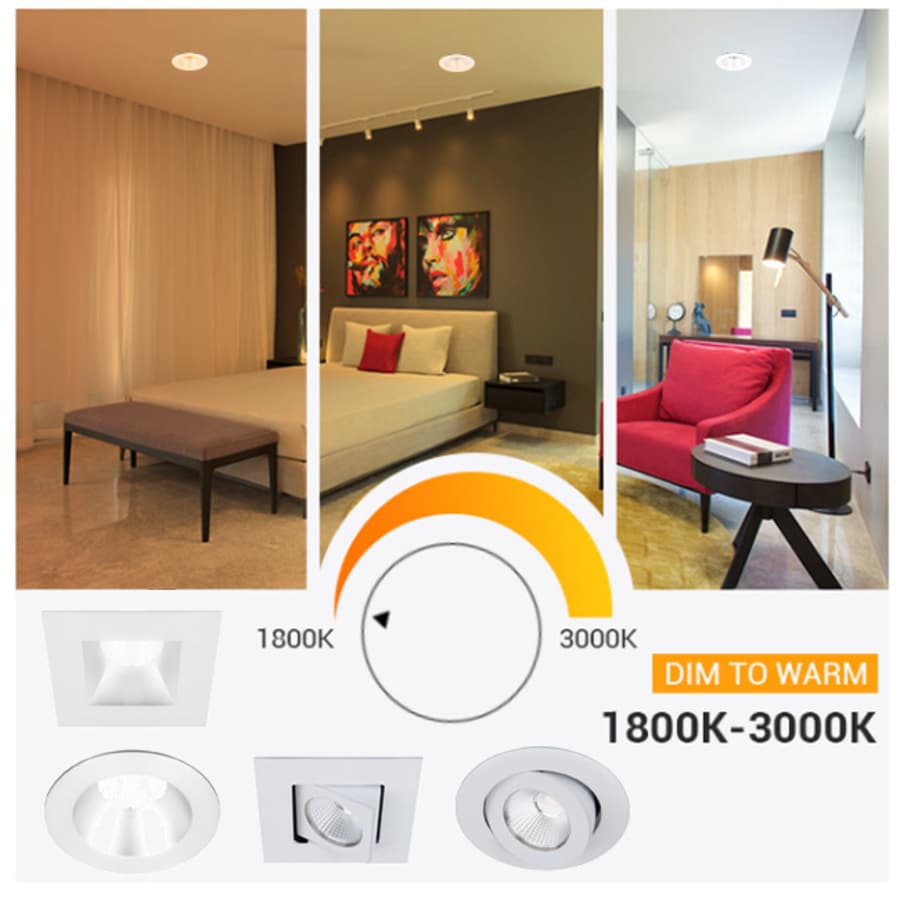

Dim to Warm – Dims smoothly and continuously from 3000K to a warmer 1800K
ETL rated for wet locations
Energy Star approved
Compliant with California Title 24 energy standards
Covered under a 2 year finish and a 5 year functional manufacturer warranty

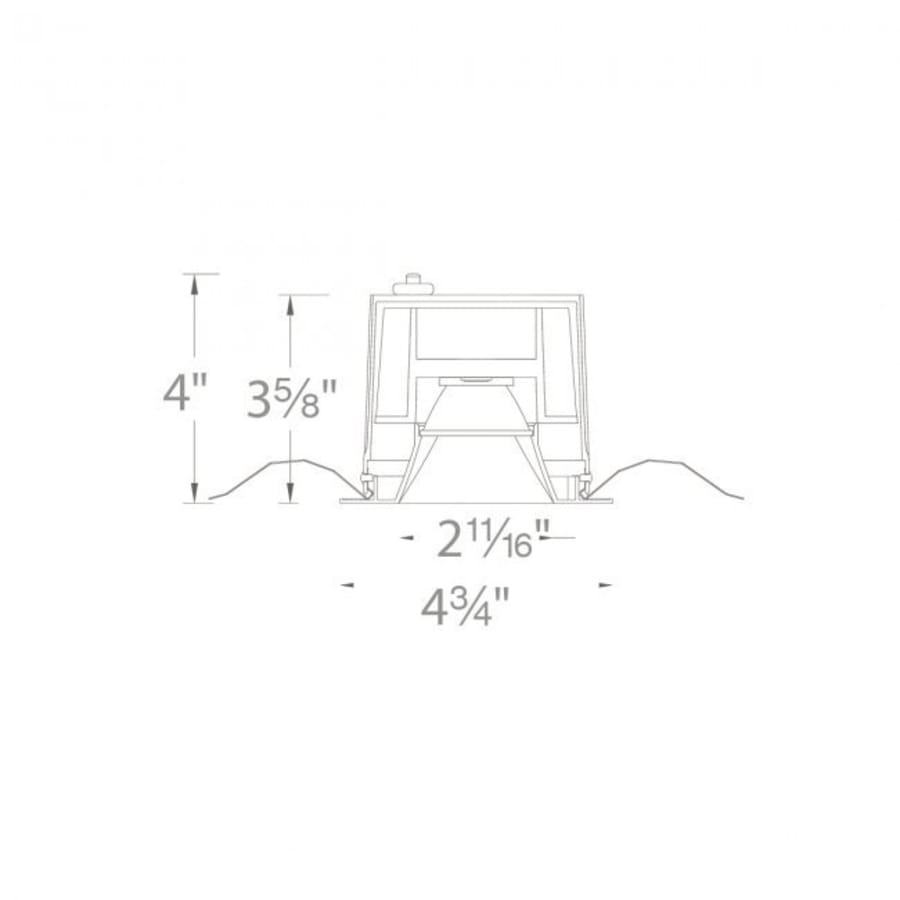

Dimensions
Trim Size: 3.5″
Height: 4″
Width: 4-3/4″
Depth: 4-3/4″
Cutout Size: 4-1/4″
Beam Spread: 50°
Electrical Specifications
Wattage: 11 watts
Lumens: 735
Color Temperature: 3000K
Color Rendering Index: 95CRI
Average Hours: 50000
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting Oculux Warm Dim Collection
Specifications
| Product Weight | 2 lbs. |
| Height | 4 in. |
| Nominal Height | 4 in. |
| Width | 4.75 in. |
| Depth | 4.75 in. |
| Nominal Width | 5 in. |
| Trim Size | 3.5 in. |
| Beam Spread | 50 Degrees |
| Cutout Size | 4.25 in. |
| Manufacturer Warranty | 2 Year Finish, 5 Year |
| Certifications | ETL |
| Collection | Oculux Warm Dim |
| Country Of Origin | China |
| Location Rating | Wet Location |
| Energy Star | Yes |
| Title 24 | Yes |
| Bulb Included | Yes |
| Bulb Base | Integrated LED |
| Bubbler Type | LED |
| Bulb Visible | No |
| Dimmable | Yes |
| LED | Yes |
| Light Direction | Down Lighting |
| Material | Aluminum |
| Number of Bulbs | 1 |
| Number of Light Source(s) | 1 |
| Thermostat | Contemporary |
| Energy Efficient | Yes |
| Airtight | Yes |
| Sloped Ceiling Compatible | Yes |
| Color Temperature | 3000K |
| Trim Style | Square Trims |
| Voltage | 120 |
| Voltage Type | Line Voltage (110-120V) |
| Wattage | 11 |
| Average Hours | 50000 Hours |
| Color Rendering Index (CRI) | 95 |
| Lumens | 735 |
| Color | White |
| Color Tone | Whites |
