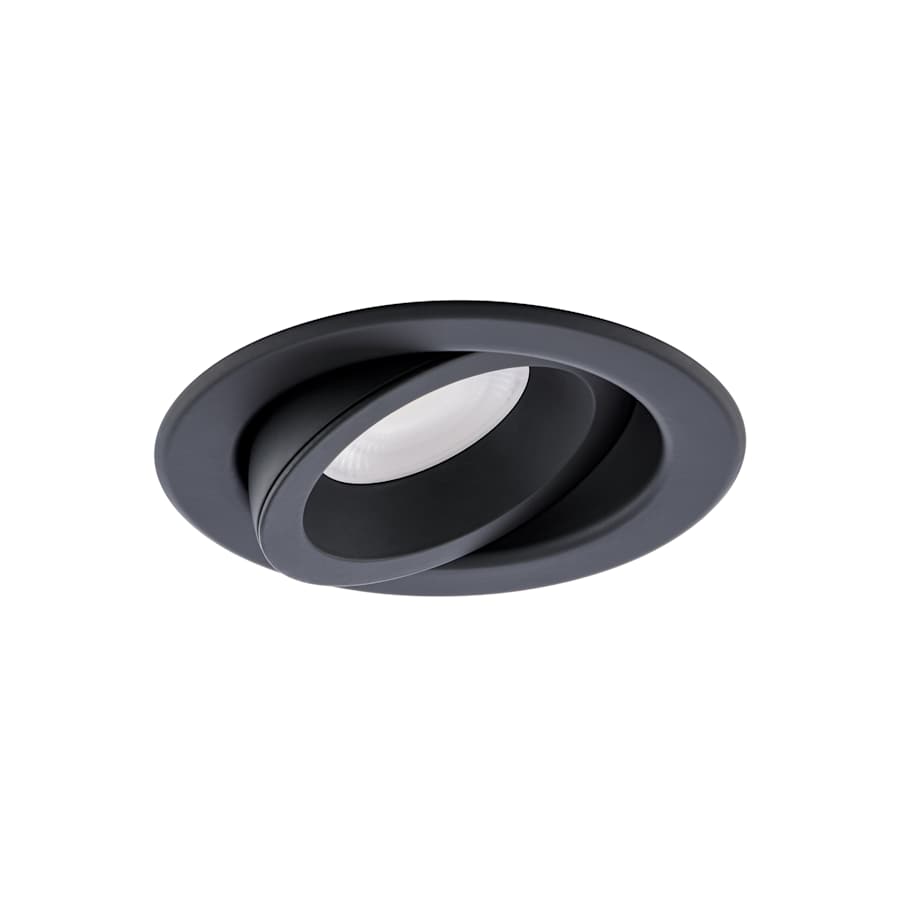

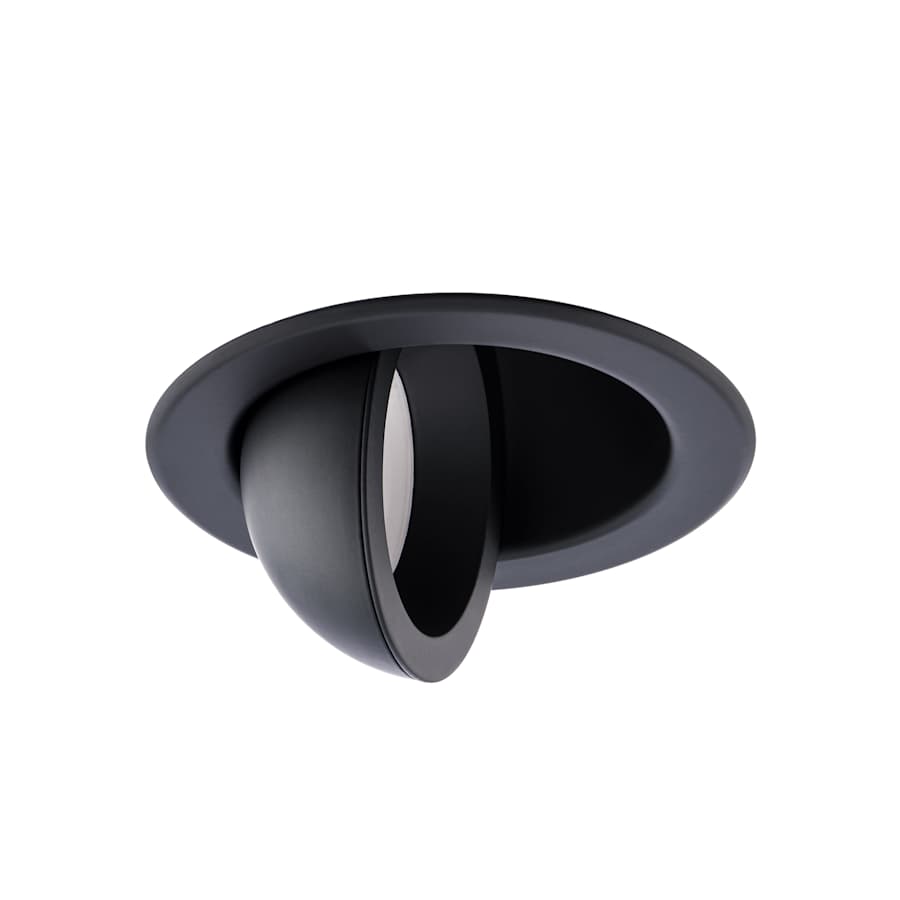

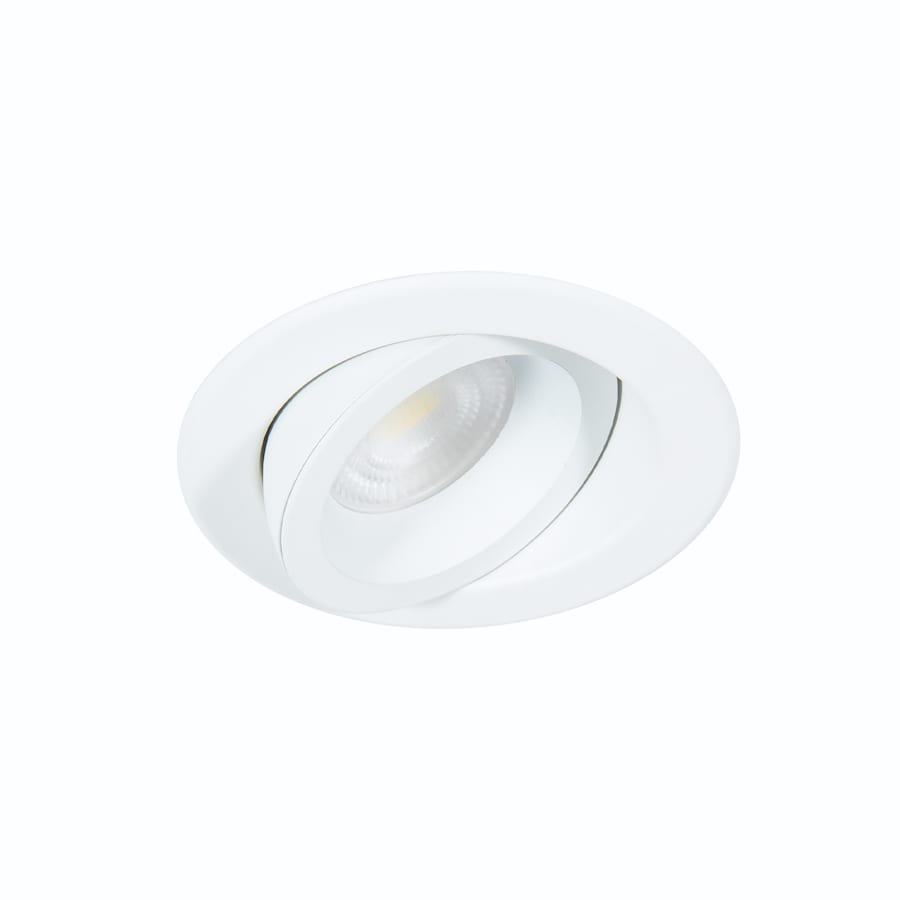

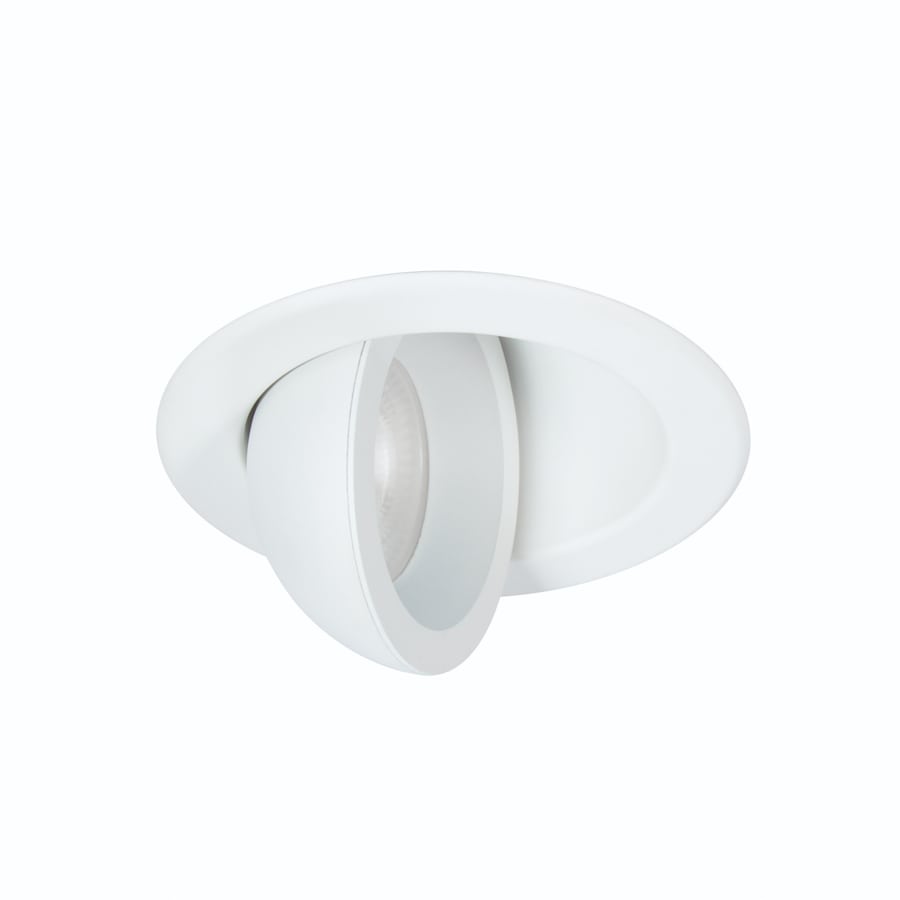

The wafer-thin Lotos R Recessed LED Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. The regressed luminaire cuts down on glare and is easier to look at from below. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos R is available as an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos R LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 4.5-inch plenum clearance.
Features:
Designed for remodels or new construction installations
Installable in pre-existing recessed housings
Insulated ceiling rated and airtight
Shallow ceiling compatible
Steel construction
Switchable Color Temperature LED lamping
Select between 2700K, 3000K, 3500K, 4000K, or 5000KÂ
Dimmable
CSA and ETL for wet locations
Energy Star certified
Title 20 and Title 24 compliant
Covered by WAC Lighting’s 2 year finish manufacturer warranty
Dimensions:
Height: 1-11/16″
Width: 4-3/4″
Depth: 4-3/4″
Trim Size: 5″
Product Weight: 1.14 lbs
Aperture: 3-1/2″
Cutout Size: 4″
Electrical Specifications:
Wattage: 9 watts
Number of Light Source(s): 1
Lumens: 740
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90 CRI
Average Hours: 50000
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting WAC Limited Collection
Specifications
| Height | 1.67 in. |
| Width | 4.73 in. |
| Depth | 4.73 in. |
| Product Weight | 1.14 lbs. |
| Trim Size | 5 in. |
| Beam Spread | 50 Degrees |
| Cutout Size | 4 in. |
| Aperture Size | 3.5 in. |
| Bulb Base | Integrated LED |
| LED | Yes |
| Number of Light Source(s) | 1 |
| Shade Color | Frosted |
| Showerhead Shape | Disk |
| Thermostat | Transitional |
| Dimmable | Yes |
| Light Direction | Down Lighting |
| Material | Steel |
| Bubbler Type | LED |
| Trim Style | Shower Trims |
| Airtight | Yes |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
| Housing Type | New Construction Housing, Remodel Housing |
| Adjustable Color Temperature | Yes |
| RGB | No |
| Shallow Ceiling Compatible | Yes |
| Replaceable LED Module | Yes |
| Average Hours | 50000 Hours |
| Color Rendering Index (CRI) | 90 |
| Lumens | 740 |
| Wattage | 9 |
| Voltage | 120, 240, 277 |
| Certifications | CSA, ETL |
| Collection | Lotos |
| Location Rating | Wet Location |
| Series | WAC Limited |
| Country Of Origin | China |
| Energy Star | Yes |
| Manufacturer Warranty | 2 Year Finish |
| Title 20 Compliant | Yes |
| Title 24 | Yes |
| Fire Rated | No |
| IC Rating | IC |
| Bulb Included | Yes |
| Shade | Yes |
| Color | Black |
| Color Tone | Blacks |
