Volta is the quintessential high performance LED architectural recessed downlight. Volta housings can be specified with one of three (15W, 25W, 36W) serviceable drivers to plan your project in accordance with energy and lighting requirements up to 3,000 Lumens. Available in New Construction IC Rated Airtight or Remodel Non-IC Airtight with Emergency backup battery and Chicago Plenum Safety options. Volta trims include an LED Light Engine with a replaceable High Powered LED module and are available in a variety of options including Round, Square, Adjustable, Wall Wash, Shallow Regressed, or a sleek flangeless trim which can be spackled directly up to the aperture. Tool-less in-field adjustable glare control and optic system can be used for louvers, lens, and beam control.
Features:
Energy Star certified
Includes (1) 15-36 watt replaceable LED module – wattage determined by housing (sold separately)
15° spot beam spread
Smooth and continuous dimming to 1% with an electronic low voltage dimmer or 0-10v dimmer
ETL and cETL listed for wet locations
5 year manufacturer warranty

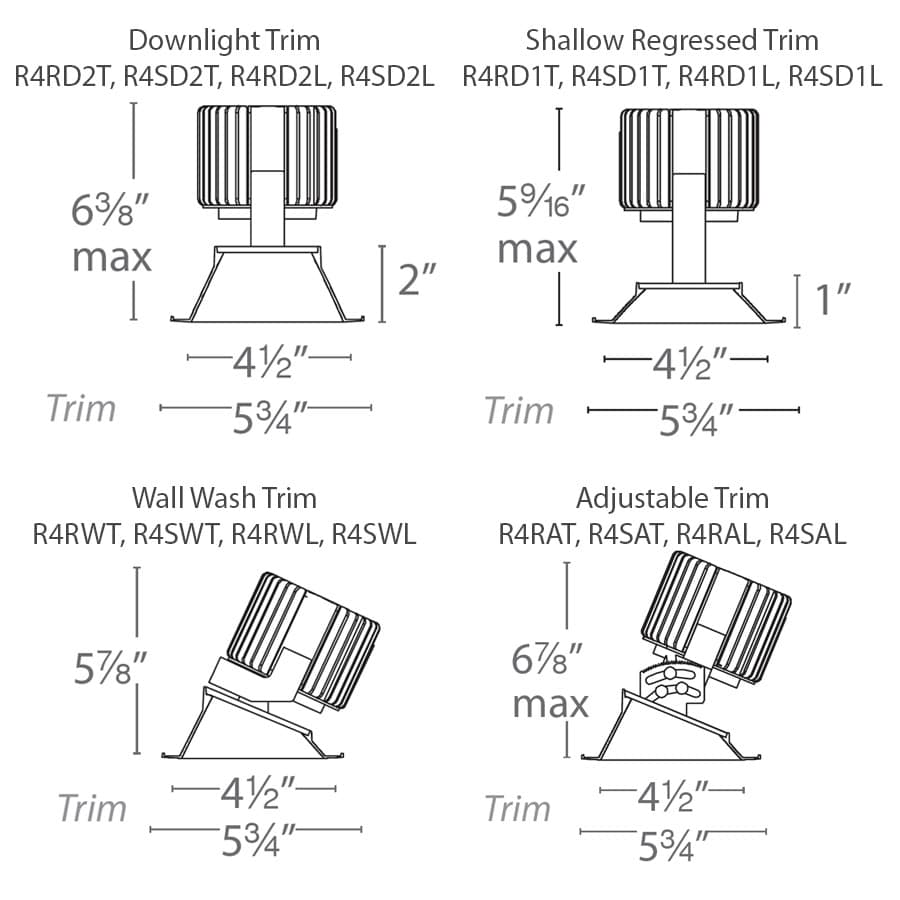

Dimensions:
Width: 5.75″
Height: 5.63″
Depth: 5.75″
Trim Size: 4.5″
Aperture: 4.5″
Electrical Specifications:
Bulb Included: Yes
Bulb Base: Integrated LED
Bulb Type: LED
Wattage: 15, 25, 36
Color Temperature: 2700k, 3000k, 3500k, 4000k
Color Rendering Index (CRI): 85, 90
Lumens: 1097, 1170, 1345, 1435, 1500, 1513, 533, 569, 655, 698, 729, 735 (see attached spec sheet)
Beam Spread: 15°
Universal Input Voltage: 120V-240V-277V
Energy Star: Yes
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting Volta Collection
Specifications
| Height | 5.63 in. |
| Width | 5.75 in. |
| Depth | 5.75 in. |
| Beam Spread | 15 Degrees |
| Trim Size | 4.5 in. |
| Material | Aluminum |
| Light Direction | Down Lighting |
| Number of Bulbs | 1 |
| Number of Light Source(s) | 1 |
| Bulb Base | Integrated LED |
| Bubbler Type | LED |
| Color Temperature | 2700K, 3000K, 3500K, 4000K |
| Dimmable | Yes |
| Sloped Ceiling Compatible | Yes |
| LED | Yes |
| Trim Style | Square Trims |
| Replaceable LED Module | Yes |
| Wattage | 15, 25, 36 |
| Watts Per Bulb | 15, 25, 36 |
| Voltage | 120, 240, 277 |
| Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
| Average Hours | 70000 Hours |
| Color Rendering Index (CRI) | 85, 90 |
| Lumens | 1097, 1170, 1345, 1435, 1500, 1513, 533, 569, 655, 698, 729, 735 |
| Collection | Volta Square Shallow Regressed |
| Country Of Origin | China |
| Location Rating | Wet Location |
| Certifications | ETL |
| Series | Volta |
| Energy Star | Yes |
| Bulb Included | Yes |
| Color | Black / 2700K / 85CRI |
| Color Tone | Blacks |
