The wafer-thin Lotos LED Recessed Kit with remote driver combines high quality light output and efficiency while eliminating the need for a large housing. This innovative design can be installed easily as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring. Lotos is available in a downlight version for general ambient lighting and an adjustable version with a gimbal that pivots 360 degrees on a hinge, perfect for slope ceilings, general lighting, accenting lighting, and wall washing. The integrated high output and energy efficient Lotos LED module maintains at least 70% light output for 50,000 hours. The Lotos is ideal for shallow ceiling applications with as little as 3-inch plenum clearance. Lotos LED is offered in round and square with 2 inch, 4 inch, and 6 inch aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations. Now with a fire rated version, -FWT.
Features:

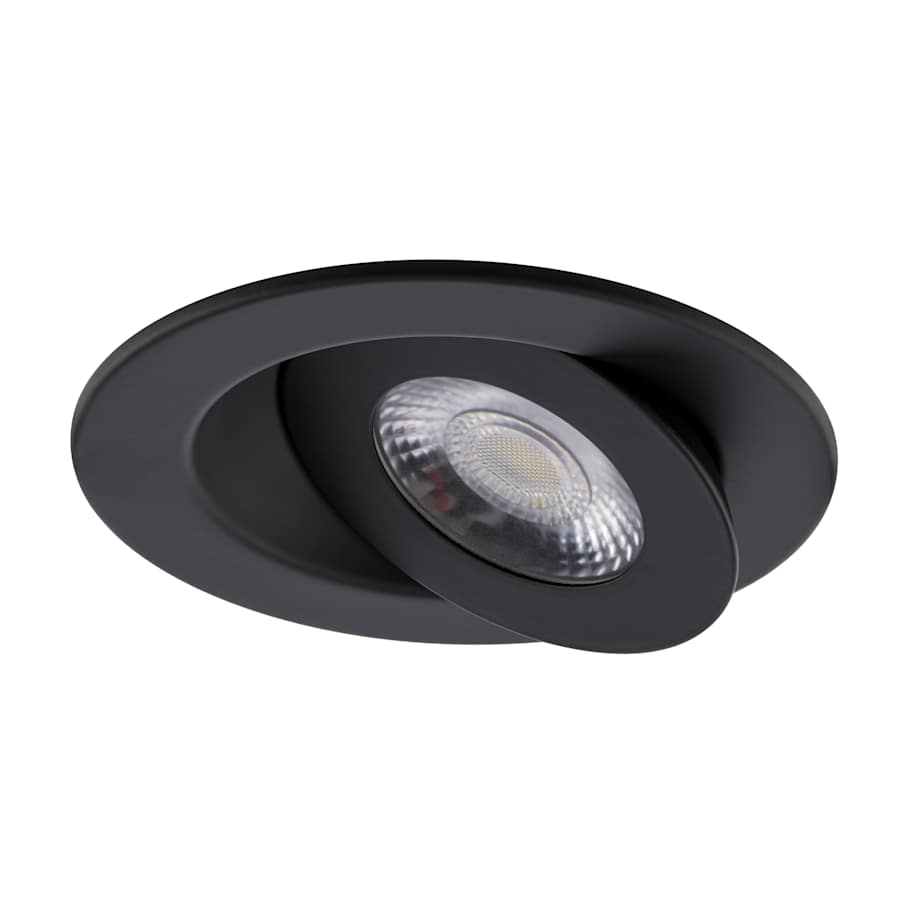

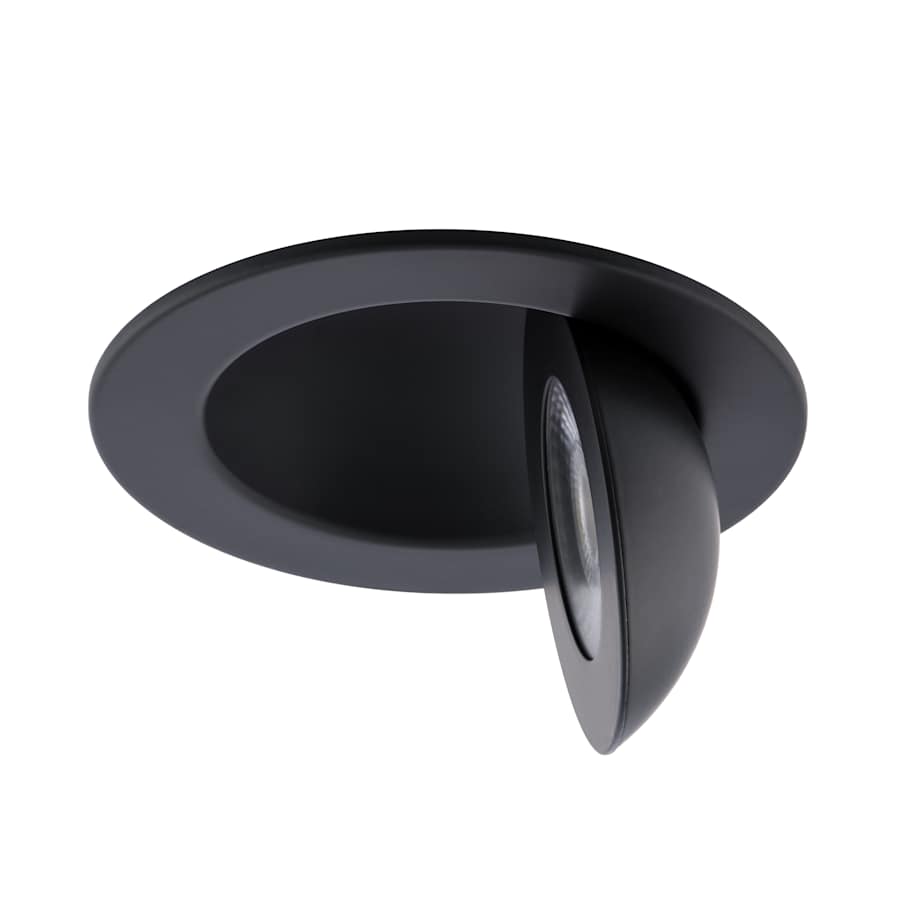

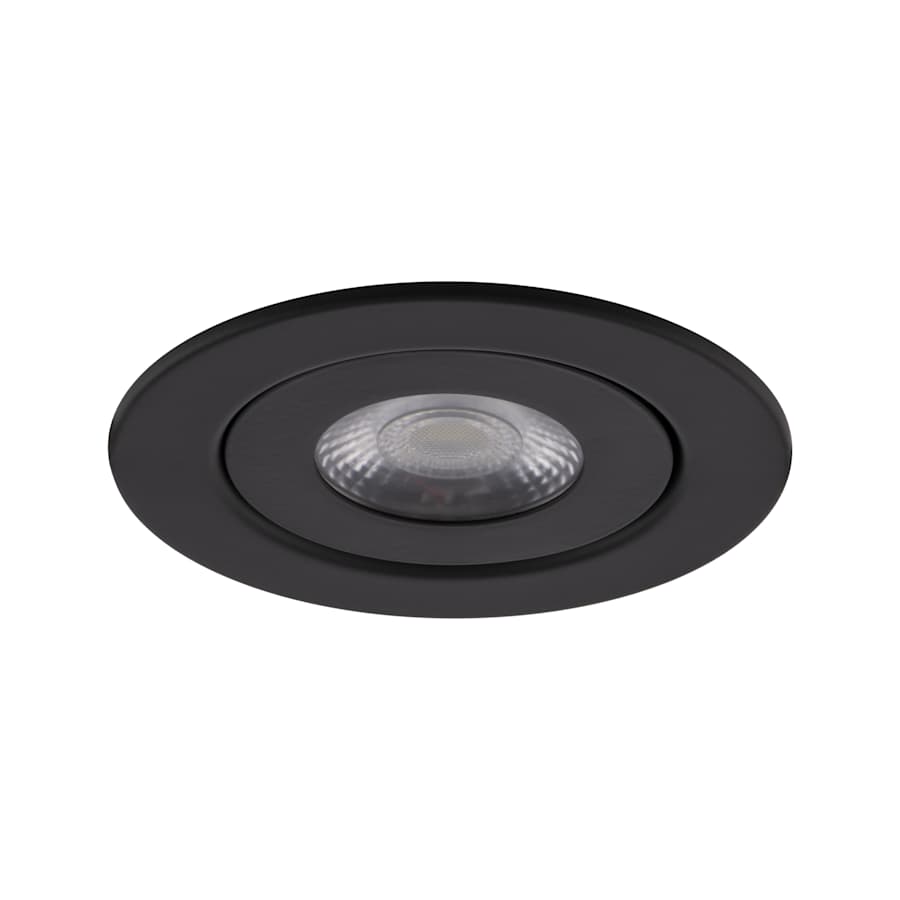

Lotos Adjustable is a complete LED recessed adjustable downlight kit with light engine and driver included. Lotos LED is offered in round and square with 2 inch, 4 inch, and 6 inch aperture options. Use part # R2ESAR-2 or R2ESAR-3 for the multi-light option with 2 and 3 light configurations
This innovative design can be installed in the shallowest ceiling depths as a remodel or new construction with an optional frame-in kit sold separately for pre-wiring (part # RER-FRAME). 6ft extension cable (Part # RER-6) is available to increase distance from driver to downlight

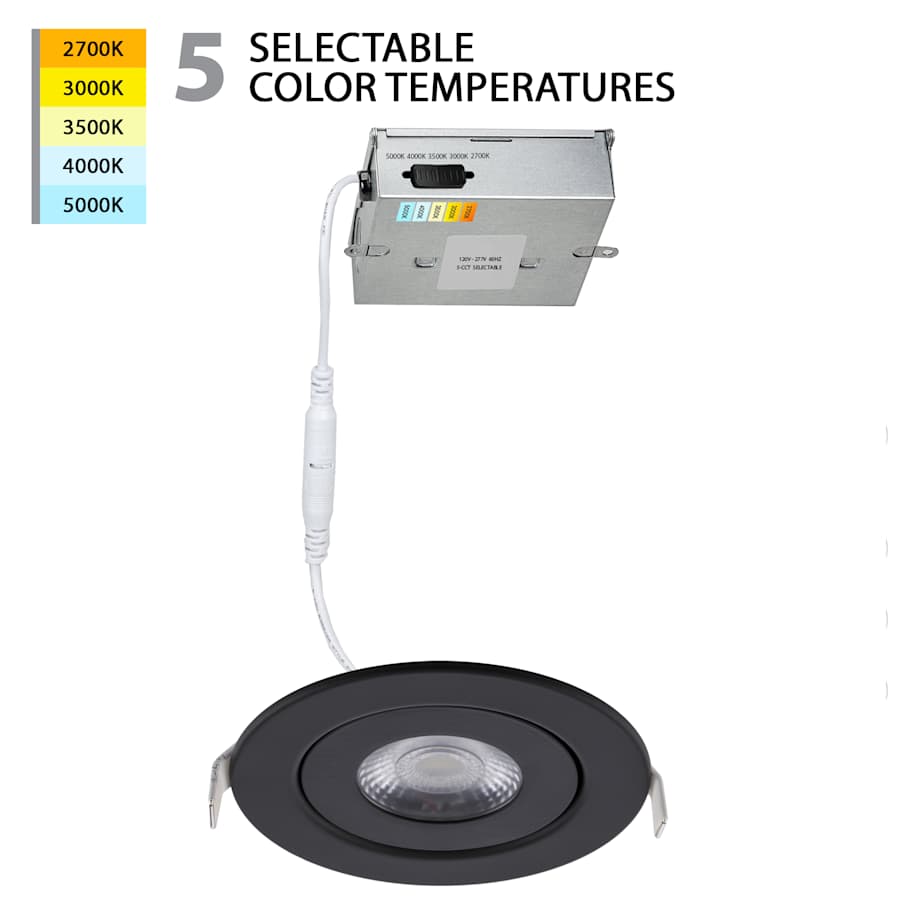

A Universal Input Voltage Driver (120V-240V-277V) is contained in a steel housing with space for line-voltage electrical connections. Driver housing includes a 6 inch low voltage plug-and-play connector that connects to the downlight
Housing is designed for use with remodels or new construction
Insulated ceiling rated and airtight
Fixture works with shallow ceilings
Can be converted to be used with pre-existing recessed housings
Constructed from steel
Integrated LED lighting
Capable of being dimmed
CSA and ETL for wet locations
Energy Star certified
Title 20 and Title 24 compliant
Covered by WAC Lighting’s 2 year finish manufacturer warranty
Dimensions:
Height: 1-5/8″
Width: 6-1/8″
Depth: 6-1/8″
Trim Size: 6″
Product Weight: 1.14 lbs
Aperture: 5-7/8″
Cutout Size: 5″
Electrical Specifications:
Wattage: 15 watts
Number of Light Source(s): 1
Lumens: 1340
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 90 CRI
Average Hours: 50000
Additional WAC Lighting Links
View the Manufacturer Warranty
Browse all WAC Lighting Products
WAC Lighting WAC Limited Collection
Specifications
| Material | Steel |
| Thermostat | Transitional |
| Bulb Base | Integrated LED |
| Bubbler Type | LED |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimmable | Yes |
| LED | Yes |
| Light Direction | Ambient Lighting |
| Number of Light Source(s) | 1 |
| Number of Bulbs | 1 |
| Shade Color | Frosted |
| Shell Material | Synthetic |
| Showerhead Shape | Disk |
| RGB | No |
| Adjustable Color Temperature | Yes |
| Trim Style | Wafer Trims |
| Replaceable LED Module | Yes |
| Shallow Ceiling Compatible | Yes |
| Housing Type | New Construction Housing, Remodel Housing |
| Airtight | Yes |
| Collection | Lotos |
| Series | WAC Limited |
| Manufacturer Warranty | 2 Year Finish |
| Certifications | CSA, ETL |
| Title 20 Compliant | Yes |
| Country Of Origin | China |
| Location Rating | Wet Location |
| Energy Star | Yes |
| Title 24 | Yes |
| Fire Rated | No |
| IC Rating | IC |
| Depth | 6.12 in. |
| Height | 1.63 in. |
| Product Weight | 1.14 lbs. |
| Width | 6.12 in. |
| Trim Size | 6 in. |
| Beam Spread | 45 Degrees |
| Cutout Size | 5 in. |
| Aperture Size | 5.88 in. |
| Voltage | 120, 240, 277 |
| Color Rendering Index (CRI) | 90 |
| Lumens | 1340 |
| Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
| Wattage | 15 |
| Watts Per Bulb | 15 |
| Average Hours | 50000 Hours |
| Bulb Included | Yes |
| Shade | Yes |
| Color | Black |
| Color Tone | Blacks |
