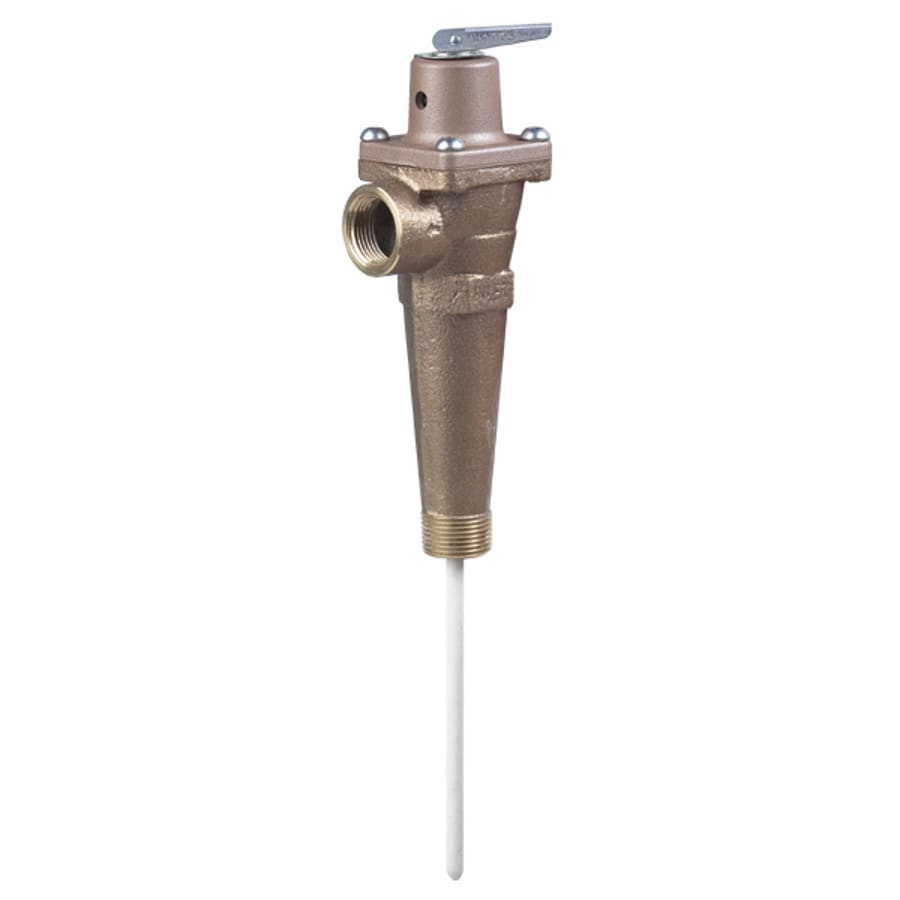

LF40XL 1″ Lead Free Automatic Reseating Temperature and Pressure Relief Valve
The combined 2-in-1 temperature and pressure relief valve provides the least expensive and proven means for protection against both excessive temperature and pressure emergency conditions.
Fully automatic temperature and pressure relief protection for domestic hot water supply tanks and heaters based on the latest ANSI Z21.22 Listing requirements for temperature discharge capacity.
LF40XL with test lever and extension thermostat for installation in hot water outlet within the allowable distance from the top of the tank based on latest ANSI Z21.22.
Watts 0556008 Features:
lead free brass
Non-mechanical seat-to-disc alignment
Exclusively designed and manufactured thermostat is accurate and proven
Tamper-resistant bonnet screws
Features a unique thermostat with a special thermo-bonded coating
Watts 0556008 Specifications:
Height: 6-1/4″
Length: 2-3/4″
Material: Brass
Connection Size: 1″
Weight: 1.95 lbs.
Additional Watts Links
Browse all Watts Products
Watts LF40XL Collection
Specifications
| Height | 6.25 in. |
| Product Weight | 1.95 lbs. |
| Length | 2.75 in. |
| Water Connection | 1" |
| Material | Brass |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
