Features:
600 CFM blower can quickly clear the air from your kitchen
Stainless steel baffle filter is easily cleaned to preserve grease removing capacity
LED lighting for illuminating your cooking surface
Touch controls allow for easy control of lighting and fan
3 year parts warranty
Specifications:
CFM: 270, 380, 490, 600
Sones: 0.6, 1.1, 1.5, 2.5
Speeds: 4
Duct Size: 6″ Round
Duct Discharge: Vertical
Bulb Type: LED
Nominal Width: 30″
Height: 7″
Depth: 22″
Height Above Cooktop: 30″ to 36″
Voltage: 120V
Wattage: 385
Â
Additional ZLINE Links
View the Manufacturer Warranty
Browse all ZLINE Products
ZLINE Professional Collection
Specifications

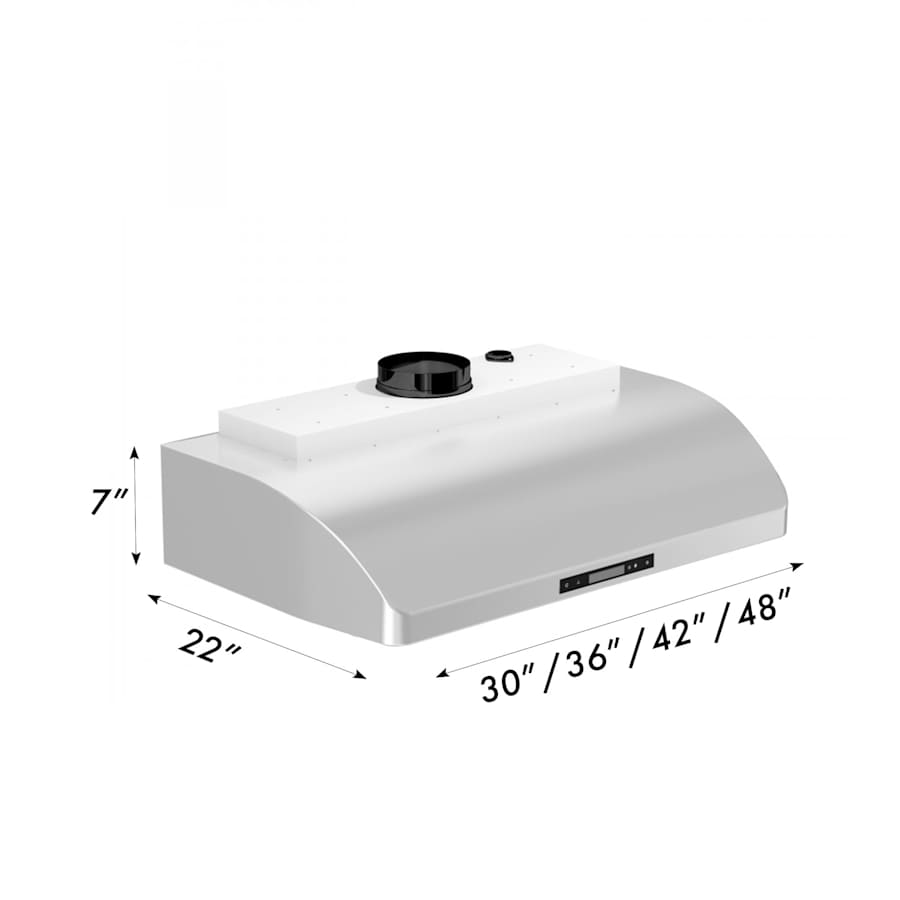

Dimensions and Measurements
| Depth | 22 in. |
| Height | 7 in. |
| Width | 30 in. |
| Nominal Width | 30 in. |
| Product Weight | 61 lbs. |
| CFM | 270, 380, 490, 600 |
| Duct Size | 6" Round |
| Height Above Cooktop | 30" to 36" |
| Height Above Cooktop (Max) | 36 in. |
| Height Above Cooktop (Min) | 30 in. |
Included Components
| Light Included | Yes |
| Bulb Included | Yes |
| Available Without Blower | No |
| Convertible to Ductless / Recirculating | No |
| Ductless | No |
| Includes Remote | No |
Characteristics and Features
| Material | Stainless Steel |
| Control Type | Touch |
| Insulation Type | Full Installation |
| Bubbler Type | LED |
| Number of Bulbs | 2 |
| Panel Ready | No |
| Blower Type | Built-In |
| Duct Discharge | Vertical |
| Filter Type | Baffle Filters |
Warranty and Product Information
| Collection | Professional |
| Country Of Origin | China |
| Manufacturer Warranty | 3 Year Parts |
| Certifications | ETL |
| ADA | No |
| Outdoor Approved | No |
| Energy Star | No |
| Title 24 | No |
Electrical and Operational Information
| Amperage | 3.5 |
| Voltage | 120 |
| Wattage | 385 |
| Frequency | 60 Hertz |
| Sones | 2.5, 1.1, 0.6, 1.5 |
| Speeds | 4 |
| Maximum Sones | 2.5 |
| Minimum Sones | 0.6 |
| Color | Brushed Stainless Steel |
| Color Tone | Stainless Steel |
